MBRB20H100CT - Dual Common Cathode High Voltage Schottky Rectifier

Vishay Siliconix

📥 Download Datasheet

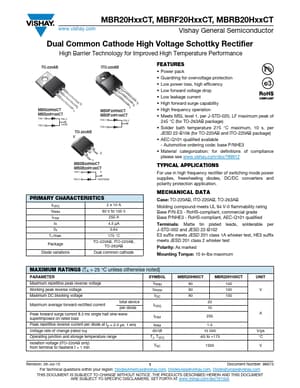

MBRB20H100CT Datasheet Preview — Preview of MBRB20H100CT PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: MBRB20H100CT
Manufacturer: Vishay ↗ Siliconix
File Size: 142.91 KB
Datasheet: MBRB20H100CT_VishaySiliconix.pdf
Description: Dual Common Cathode High Voltage Schottky Rectifier

MBRB20H100CT Product details

Features

Power pack.
Guardring for overvoltage protection.
Low power loss, high efficiency.
Low forward voltage drop.
Low leakage current.
High forward surge capability.
High frequency operation.
Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package).
Solder bath temperature 275 °C maximum, 10 s, per JESD 22-B106 (for TO-220AB and ITO-220AB package).
