MBRB60H100CTT4G, MBR60H100CTG Switch-mode Power Rectifier

MBRB60H100CTT4G Description

Switch-mode Power Rectifier 100 V, 60 A MBR60H100CTG, MBRB60H100CTT4G, NRVBB60H100CTT4G .

MBRB60H100CTT4G Features

* Low Forward Voltage: 0.72 V @ 125°C
* Low Power Loss/High Efficiency
* High Surge Capacity
* 175°C Operating Junction Temperature
* 60 A Total (30 A Per Diode Leg)

MBRB60H100CTT4G Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* These Devices are Pb
* Free and are RoHS Compliant Applications
* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Cha

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRB60H100CTT4G, MBR60H100CTG. Please refer to the document for exact specifications by model.

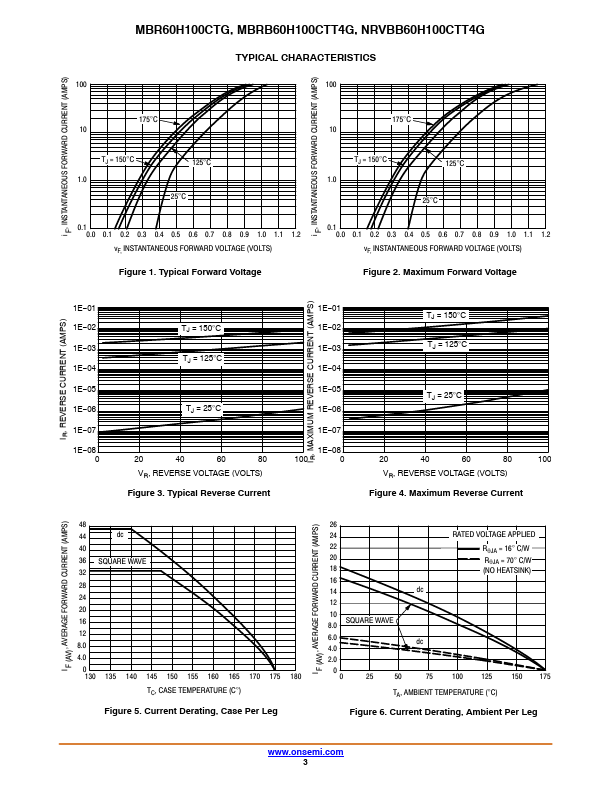

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRB60H100CTT4G, MBR60H100CTG
Manufacturer
ON Semiconductor ↗
File Size
243.32 KB
Datasheet
MBR60H100CTG-ONSemiconductor.pdf
Description
Switch-mode Power Rectifier
Note
This datasheet PDF includes multiple part numbers: MBRB60H100CTT4G, MBR60H100CTG.
Please refer to the document for exact specifications by model.
