MBRB10100-M3, MBRB1090-M3 High-Voltage Trench MOS Barrier Schottky Rectifier

MBRB10100-M3 Description

www.vishay.com MBRB1090-M3, MBRB10100-M3 Vishay General Semiconductor High-Voltage Trench MOS Barrier Schottky Rectifier TMBS ® TO-263AB K 2 1 M.

MBRB10100-M3 Features

* Trench MOS Schottky technology
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
* Material categorization

MBRB10100-M3 Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters, or polarity protection application. MECHANICAL DATA Case: TO-263AB Molding compound meets UL 94 V-0 flammability rating Base P/N-M3 - halogen-free, RoHS-compliant, and commercial grade Termin

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRB10100-M3, MBRB1090-M3. Please refer to the document for exact specifications by model.

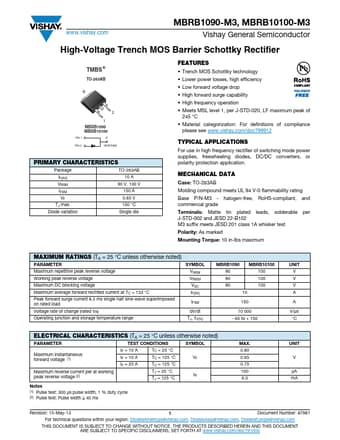

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRB10100-M3, MBRB1090-M3
Manufacturer
Vishay ↗
File Size
89.42 KB
Datasheet
MBRB1090-M3-Vishay.pdf
Description
High-Voltage Trench MOS Barrier Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: MBRB10100-M3, MBRB1090-M3.
Please refer to the document for exact specifications by model.
