MBRB10H100 High Voltage Schottky Rectifier

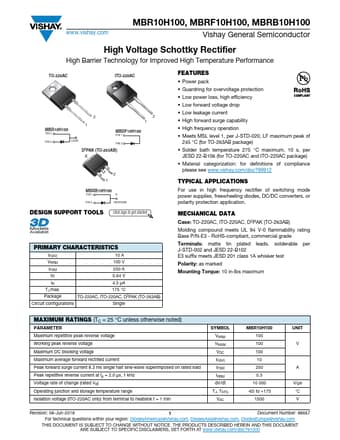

www.vishay.com MBR10H100, MBRF10H100, MBRB10H100 Vishay General Semiconductor High Voltage Schottky Rectifier High Barrier Technology for Improved High Temperature Performance TO-220AC ITO-220AC MBR10H100 PIN 1 2 1 1 MBRF10H100 PIN 1 PIN 2 CASE PIN 2 D2PAK (TO-263AB) K 2 2 1 MBRB10H100 PIN 1 K PIN 2 HEATSINK DESIGN SUPPORT TOOLS click logo to get started Models Available PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max. Package 10 A 100 V 250 A 0.64 V 4.5 μA 175 °C T.

MBRB10H100 Features

* Power pack

* Guardring for overvoltage protection

* Low power loss, high efficiency

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* High frequency operation

* Meets MSL level 1, per J-STD-020, LF max

MBRB10H100 Datasheet (142.90 KB)
