MBRB10H100CT Dual Common Cathode High Voltage Schottky Rectifier

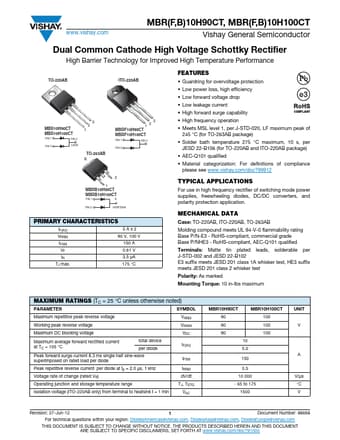

www.vishay.com MBR(F,B)10H90CT, MBR(F,B)10H100CT Vishay General Semiconductor Dual Common Cathode High Voltage Schottky Rectifier High Barrier Technology for Improved High Temperature Performance TO-220AB ITO-220AB MBR10H90CT MBR10H100CT PIN 1 PIN 2 PIN 3 CASE 3 2 1 TO-263AB K 123 MBRF10H90CT MBRF10H100CT PIN 1 PIN 2 PIN 3 2 1 MBRB10H90CT MBRB10H100CT PIN 1 K PIN 2 HEATSINK PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max. 5Ax2 90 V, 100 V 150 A 0.61 V 3.5 μA 175 °C.

MBRB10H100CT Features

* Guardring for overvoltage protection

* Low power loss, high efficiency

* Low forward voltage drop

* Low leakage current

* High forward surge capability

* High frequency operation

* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (
