MBRB10H90CT Datasheet - Vaishali Semiconductor

MBRB10H90CT, MBR10H100CT / MBRF10H100CT & MBRB10H100CT Series

MBR10H100CT, MBRF10H100CT & MBRB10H100CT Series New Product Vishay Semiconductor Rev.Voltage 90 to 100V Forward Current 10A Dual High-Voltage Schot.

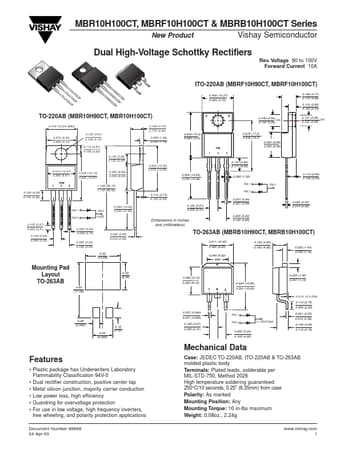

datasheet Preview Page 1 from Datasheet4u.com

MBRB10H90CT_VaishaliSemiconductor.pdf

Preview of MBRB10H90CT PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

MBRB10H90CT

Manufacturer:

Vaishali Semiconductor

File Size:

88.58 KB

Description:

MBR10H100CT / MBRF10H100CT & MBRB10H100CT Series

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection

Applications

* Document Number 88668 24-Apr-03 Case: JEDEC TO-220AB, ITO-220AB & TO-263AB molded plastic body Terminals: Plated leads, solderable per MIL-STD-750, Method 2026 High temperature soldering guaranteed: 250°C/10 seconds, 0.25" (6.35mm) from case Polarity: As marked Mounting Position: Any Mounting Torqu
