MBRB10H150CT-1 Dual High-Voltage Schottky Rectifiers

Vishay Siliconix

Description

MBR10H150CT, MBRF10H150CT & MBRB10H150CT-1 New Product Vishay Semiconductors formerly General Semiconductor Reverse Voltage 150V Forward Current 10A .

📥 Download Datasheet

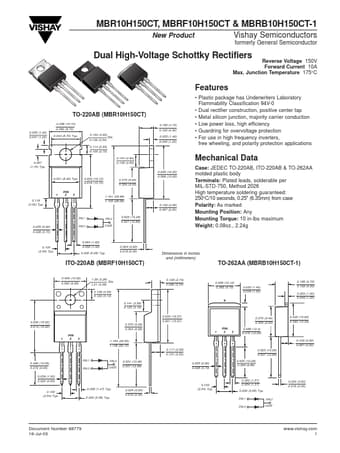

MBRB10H150CT-1 Datasheet Preview — Preview of MBRB10H150CT-1 PDF

Datasheet Specifications

Part number: MBRB10H150CT-1
Manufacturer: Vishay ↗ Siliconix
File Size: 47.92 KB
Datasheet: MBRB10H150CT-1_VishaySiliconix.pdf
Description: Dual High-Voltage Schottky Rectifiers

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Dual rectifier construction, positive center tap
* Metal silicon junction, majority carrier conduction
* Low power loss, high efficiency
* Guardring for overvoltage protection

Applications

* TO-220AB (MBR10H150CT) 0.398 (10.10) 0.382 (8.70) 0.055 (1.40) 0.047 (1.20) 0.343 (8.70) Typ. 0.150 (3.80) 0.139 (3.54) 0.114 (2.90) 0.106 (2.70) 0.154 (3.90) 0.138 (3.50) 0.638 (16.20) 0.598 (15.20) 0.370 (9.40) 0.354 (9.00) Dia. 0.185 (4.70) 0.169 (4.30) 0.055 (1.40) 0.049 (1.25) 0.067 (1.70) Ty
