MBRB10H90, MBR10H90, High Voltage Schottky Rectifier

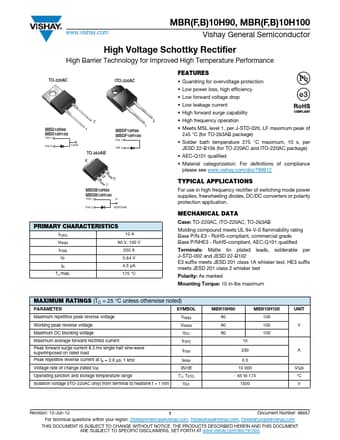

MBR(F,B)10H90, MBR(F,B)10H100 www.vishay.com Vishay General Semiconductor High Voltage Schottky Rectifier High Barrier Technology for Improved High .

datasheet Preview Page 1 from Datasheet4u.com

MBR10H90-Vishay.pdf

MBRB10H90 Datasheet Preview — This datasheet PDF includes multiple part numbers: MBRB10H90, MBR10H90. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MBRB10H90, MBR10H90

Manufacturer:

Vishay ↗

File Size:

130.51 KB

Description:

High Voltage Schottky Rectifier

Note:

This datasheet PDF includes multiple part numbers: MBRB10H90, MBR10H90.
Please refer to the document for exact specifications by model.

Features

* TO-220AC ITO-220AC
* Guardring for overvoltage protection
* Low power loss, high efficiency
* Low forward voltage drop
* Low leakage current
* High forward surge capability 2 MBR10H90 MBR10H100 PIN 1 PIN 2 2 1 MBRF10H90 MBRF10H100 PIN 1 PIN 2
* Hig

Applications

* For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters or polarity protection application. MECHANICAL DATA PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF IR TJ max. 10 A 90 V, 100 V 250 A 0.64 V 4.5 μA 175 °C Case: TO-220AC, ITO-220AC, TO-263AB Mol
