MBRB1050, MBR1035 Datasheet - Vishay

MBRB1050 Schottky Barrier Rectifier

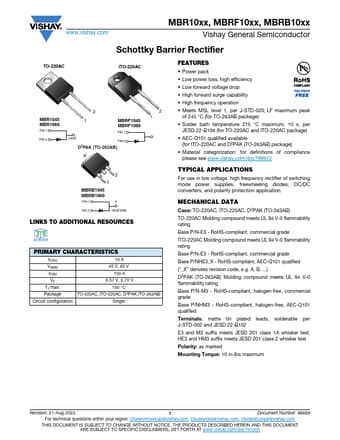

www.vishay.com MBR10xx, MBRF10xx, MBRB10xx Vishay General Semiconductor Schottky Barrier Rectifier TO-220AC ITO-220AC MBR1045 MBR1060 PIN 1 PIN 2 2 1 MBRF1045 MBRF1060 PIN 1 CASE PIN 2 D2PAK (TO-263AB) K 2 1 2 1 MBRB1045 MBRB1060 PIN 1 K PIN 2 HEATSINK LINKS TO ADDITIONAL RESOURCES 3D 3D 3D Models PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF TJ max. Package 10 A 45 V, 60 V 150 A 0.57 V, 0.70 V 150 °C TO-220AC, ITO-220AC, D2PAK (TO-263AB) Circuit configuration Single F.

MBRB1050 Features

* Power pack

* Low power loss, high efficiency

* Low forward voltage drop

* High forward surge capability

* High frequency operation

* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C (for TO-263AB package)

* Solder bath temperature

MBR1035-Vishay.pdf

This datasheet PDF includes multiple part numbers: MBRB1050, MBR1035. Please refer to the document for exact specifications by model.
