MBRF2045CT, MBR2045CT - Power Rectifier

MBRF2045CT Description

MBR2045CT, MBRF2045CT SWITCHMODE Power Rectifier .

MBRF2045CT Features

* Low Forward Voltage
* Low Power Loss / High Efficiency
* High Surge Capacity
* 175°C Operating Junction Temperature
* 20 A Total (10 A Per Diode Leg)
* Pb
* Free Package is Available

MBRF2045CT Applications

* Power Supply
* Output Rectification
* Power Management
* Instrumentation Mechanical Characteristics
* Case: Epoxy, Molded
* Epoxy Meets UL 94, V
* 0 @ 0.125 in
* Weight: 1.9 Grams (Approximately)
* Finish: All External Surfaces

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBRF2045CT, MBR2045CT. Please refer to the document for exact specifications by model.

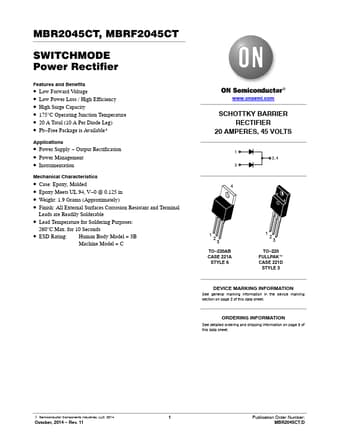

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRF2045CT, MBR2045CT
Manufacturer
ON Semiconductor ↗
File Size
316.54 KB
Datasheet
MBR2045CT-ONSemiconductor.pdf
Description
Power Rectifier
Note
This datasheet PDF includes multiple part numbers: MBRF2045CT, MBR2045CT.
Please refer to the document for exact specifications by model.
