MC33274AD - Low Input Offset Voltage Operational Amplifier

Product Overview

ON Semiconductor

📥 Download Datasheet

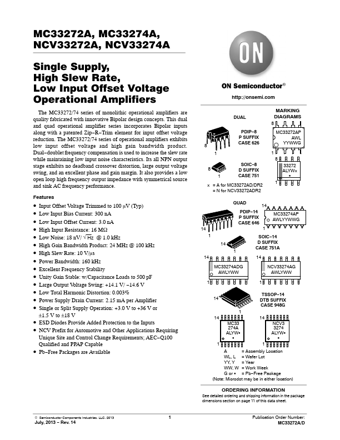

MC33274AD Low Input Offset Voltage Operational Amplifier by ON Semiconductor - Datasheet Preview — Datasheet preview – MC33274AD

Datasheet Details

Part number	MC33274AD
Manufacturer	ON Semiconductor
File Size	321.20 KB
Description	Low Input Offset Voltage Operational Amplifier
Datasheet	MC33274AD Datasheet
Note	This datasheet PDF includes multiple part numbers: MC33274AD, MC33272A. Please refer to the document for exact specifications by model.
Additional preview pages of the MC33274AD datasheet.

Product details

Features

Input Offset Voltage Trimmed to 100 mV (Typ).
Low Input Bias Current: 300 nA.
Low Input Offset Current: 3.0 nA.
High Input Resistance: 16 MW.
Low Noise: 18 nV/ √ Hz @ 1.0 kHz.
High Gain Bandwidth Product: 24 MHz @ 100 kHz.
High Slew Rate: 10 V/ms.
Power Bandwidth: 160 kHz.
Excellent Frequency Stability.
Unity Gain Stable: w/Capacitance Loads to 500 pF.
Large Output Voltage Swing: +14.1 V/.
