MC33274AP, MC33272A Datasheet - ON Semiconductor

MC33274AP Low Input Offset Voltage Operational Amplifier

MC33272A, MC33274A, NCV33272A, NCV33274A Single Supply, High Slew Rate, Low Input Offset Voltage Operational Amplifiers The MC33272/74 series of monolithic operational amplifiers are quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip R Trim element for input offset voltage reduction. The MC33272/74 series of operational amplifiers exhibits low input offset voltage and h.

MC33274AP Features

* Input Offset Voltage Trimmed to 100 mV (Typ)

* Low Input Bias Current: 300 nA

* Low Input Offset Current: 3.0 nA

* High Input Resistance: 16 MW

* Low Noise: 18 nV/ √ Hz @ 1.0 kHz

* High Gain Bandwidth Product: 24 MHz @ 100 kHz

* High Slew Rat

MC33272A_ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MC33274AP, MC33272A. Please refer to the document for exact specifications by model.

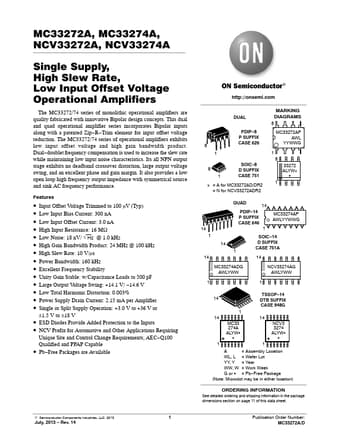

MC33274AP Datasheet Preview Page 2 MC33274AP Datasheet Preview Page 3

Datasheet Details

Part number:

MC33274AP, MC33272A

Manufacturer:

ON Semiconductor ↗

File Size:

321.20 KB

Description:

Low input offset voltage operational amplifier.

Note:

This datasheet PDF includes multiple part numbers: MC33274AP, MC33272A.
Please refer to the document for exact specifications by model.
