MC74HC10A, Triple 3-Input NAND Gate

MC74HC10A Triple 3-Input NAND Gate High *Performance Silicon *Gate CMOS The MC74HC10A is identical in pinout to the LS10.The device in.

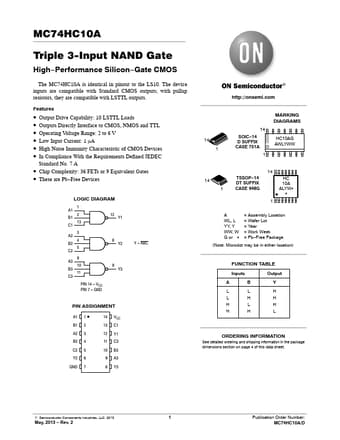

datasheet Preview Page 1 from Datasheet4u.com

MC74HC10A_ONSemiconductor.pdf

MC74HC10A Datasheet Preview — Preview of MC74HC10A PDF

Datasheet Details

Part number:

MC74HC10A

Manufacturer:

ON Semiconductor ↗

File Size:

264.95 KB

Description:

Triple 3-Input NAND Gate

Features

* Output Drive Capability: 10 LSTTL Loads
* Outputs Directly Interface to CMOS, NMOS and TTL
* Operating Voltage Range: 2 to 6 V
* Low Input Current: 1 mA
* High Noise Immunity Characteristic of CMOS Devices
* In Compliance With the Requirements Define

Applications

* of any voltage higher than maximum rated voltages to this high
* impedance circuit. For proper operation, Vin and Vout should be constrained to the range GND v (Vin or Vout) v VCC. Unused inputs must always be tied to an appropriate logic voltage level (e. g. , either GND or VCC). Unused outputs
