MC74HC126A, MC74HC125A - Quad 3-State Noninverting Buffers

MC74HC126A Description

DATA SHEET www.onsemi.com Quad 3-State Noninverting Buffers High *Performance Silicon *Gate CMOS MC74HC125A, MC74HCT125A, MC74HC126A Th.

MC74HC126A Features

* Output Drive Capability: 15 LSTTL Loads
* Outputs Directly Interface to CMOS, NMOS, and TTL
* Operating Voltage Range: 2.0 to 6.0 V (HC), 4.5 to 5.5 V (HCT)
* Low Input Current: 1.0 mA
* High Noise Immunity Characteristic of CMOS Devices
* In Complia

MC74HC126A Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q100 Qualified and PPAP Capable
* These Devices are Pb
* Free, Halogen Free/BFR Free and are RoHS Compliant 14 1 MARKING DIAGRAMS 14 SOIC
* 14 D SUFFIX CASE 751A 1 XXXXXXG AWLYWW 14 1 TSSOP
* 14 DT SUF

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MC74HC126A, MC74HC125A. Please refer to the document for exact specifications by model.

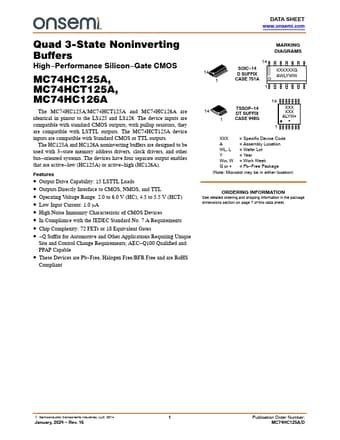

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC74HC126A, MC74HC125A
Manufacturer
ON Semiconductor ↗
File Size
286.91 KB
Datasheet
MC74HC125A_ONSemiconductor.pdf
Description
Quad 3-State Noninverting Buffers
Note
This datasheet PDF includes multiple part numbers: MC74HC126A, MC74HC125A.
Please refer to the document for exact specifications by model.
