MM3Z15VST1 - Zener Voltage Regulators

Product Overview

ON Semiconductor

Part number	MM3Z15VST1
Manufacturer	ON Semiconductor
File Size	80.65 KB
Description	Zener Voltage Regulators
Datasheet	MM3Z15VST1 Datasheet

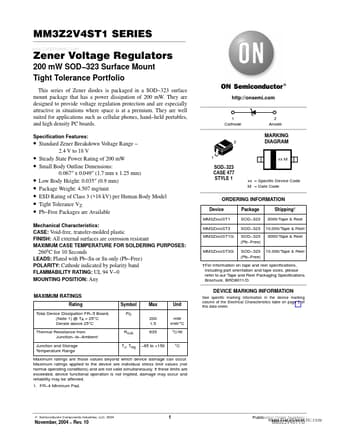

Additional preview pages of the MM3Z15VST1 datasheet.

http://onsemi. com 1 Cathode 2 Anode.
Standard Zener Breakdown Voltage Range.
2.4 V to 18 V Steady State Power Rating of 200 mW Small Body Outline Dimensions: 0.067″ x 0.049″ (1.7 mm x 1.25 mm) Low Body Height: 0.035″ (0.9 mm) Package Weight: 4.507 mg/unit ESD Rating of Class 3 (>16 kV) per Human Body Model Tight Tolerance VZ Pb.
Free Packages are Available 1 2.
