MM3Z15VST3, MM3Z15VST1 Datasheet - ON Semiconductor

MM3Z15VST3 - Zener Voltage Regulators

MM3Z2V4ST1 SERIES www.DataSheet4U.com Zener Voltage Regulators 200 mW SOD 323 Surface Mount Tight Tolerance Portfolio This series of Zener diodes is packaged in a SOD 323 surface mount package that has a power dissipation of 200 mW.

They are designed to provide voltage regulation protection and are especially attractive in situations where space is at a premium.

They are well suited for applications such as cellular phones, hand held portables, and high density PC boards

MM3Z15VST3 Features

* http://onsemi.com 1 Cathode 2 Anode

* Standard Zener Breakdown Voltage Range

* 2.4 V to 18 V Steady State Power Rating of 200 mW Small Body Outline Dimensions: 0.067″ x 0.049″ (1.7 mm x 1.25 mm) Low Body Height

MM3Z15VST1_ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MM3Z15VST3, MM3Z15VST1. Please refer to the document for exact specifications by model.

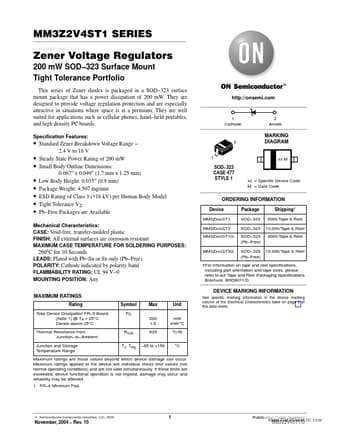

MM3Z15VST3 Datasheet Preview Page 2 MM3Z15VST3 Datasheet Preview Page 3

Datasheet Details

Part number:

MM3Z15VST3, MM3Z15VST1

Manufacturer:

ON Semiconductor ↗

File Size:

80.65 KB

Description:

Zener voltage regulators.

Note:

This datasheet PDF includes multiple part numbers: MM3Z15VST3, MM3Z15VST1.
Please refer to the document for exact specifications by model.
