MMSZ20T1G, MMSZ2V4T1G Datasheet - ON Semiconductor

MMSZ20T1G Zener Voltage Regulator

MMSZ20T1G Features

* 500 mW Rating on FR

* 4 or FR

* 5 Board

* Wide Zener Reverse Voltage Range

* 2.4 V to 56 V

* Package Designed for Optimal Automated Board Assembly

* Small Package Size for High Density Applications

* ESD Rating of Class 3 (> 16 kV) per Hu

MMSZ2V4T1G_ONSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MMSZ20T1G, MMSZ2V4T1G. Please refer to the document for exact specifications by model.

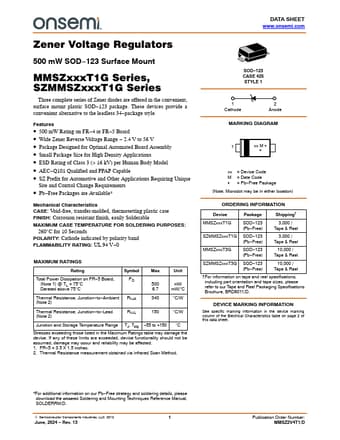

MMSZ20T1G Datasheet Preview Page 2 MMSZ20T1G Datasheet Preview Page 3

Datasheet Details

Part number:

MMSZ20T1G, MMSZ2V4T1G

Manufacturer:

ON Semiconductor ↗

File Size:

227.75 KB

Description:

Zener voltage regulator.

Note:

This datasheet PDF includes multiple part numbers: MMSZ20T1G, MMSZ2V4T1G.
Please refer to the document for exact specifications by model.
