MMSZ20VCW Surface mount zener diode

MMSZ2V4 THRU MMSZ75V Surface mount zener diode Voltage: 2.4-75 Volts Peak Pulse Power:500 mWatts 500mW SOD-123 SURFACE MOUNT Flat Lead Surface Mount Plastic Package Zener Voltage Regulators Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Value Units PD Power Dissipation 500 mW TSTG Storage Temperature Range -65 to +150 °C TOPR Operating Temperature Range -65 to +150 °C These ratings are limiting values above which the serviceability of the diode may.

MMSZ20VCW Features

* Wide Zener Voltage Range Selection, 2.4V to 75V

* VZ Tolerance Selection of ±5% (C Series)

* Flat Lead SOD-123 Plastic Package

* Surface Device Type Mounting

* RoHS Compliant

* Green EMC

* Matte Tin(Sn) Lead Finish

* Band Indicates Cathode Electrical Characteristi

MMSZ20VCW Datasheet (254.12 KB)

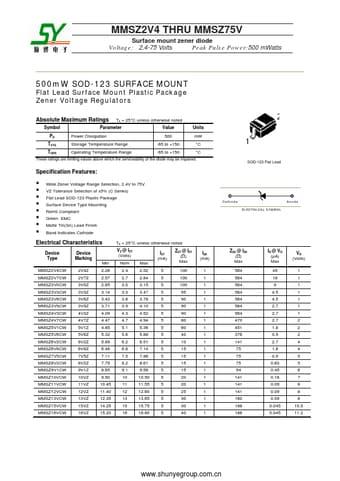

MMSZ20VCW Datasheet Preview — Preview of MMSZ20VCW PDF

Datasheet Details

Part number:

MMSZ20VCW

Manufacturer:

Shunye

File Size:

254.12 KB

Description:

Surface mount zener diode.
