MMSZ4688ET1G

Zener Voltage Regulators

ON Semiconductor

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	MMSZ4688ET1G	DIODE ZENER 4.7V 500MW SOD123	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (255.91 KB)

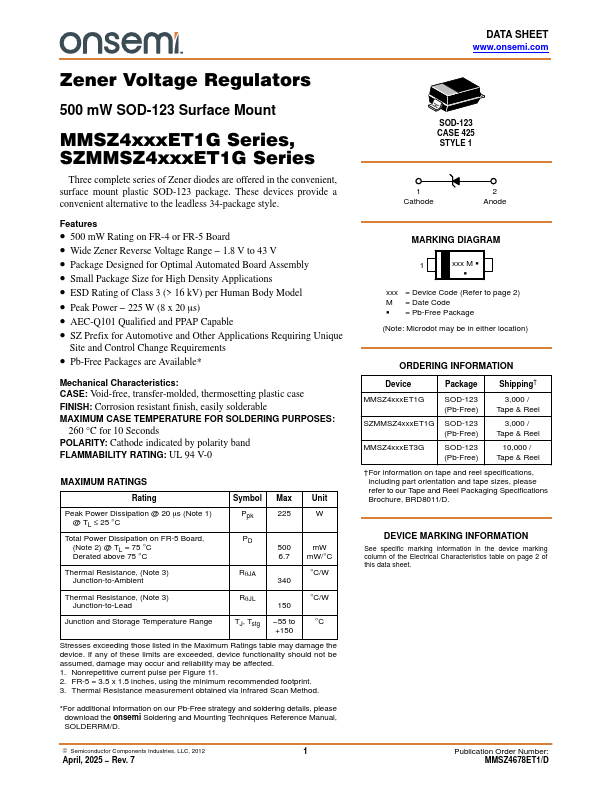

MMSZ4688ET1G Datasheet Preview — Preview of MMSZ4688ET1G Datasheet

Datasheet Details

Part number:

MMSZ4688ET1G

Manufacturer:

ON Semiconductor ↗

File Size:

255.91 KB

Description:

Zener voltage regulators.
MMSZ4xxxET1G Series, SZMMSZ4xxxET1G Series Zener Voltage Regulators 500 mW SOD*123 Surface Mount Th.
ree complete series of Zener diodes are offered in the convenient, surface mount plastic SOD*123 pac.

✔ MMSZ4688ET1G Features

500 mW Rating on FR
4 or FR
5 Board
Wide Zener Reverse Voltage Range
1.8 V to 43 V
Package Designed for Optimal Automated Board Assembly
Small Package Size for

✔ MMSZ4688ET1G Application

ESD Rating of Class 3 (> 16 kV) per Human Body Model
Peak Power
225 W (8 x 20 ms)
AEC
Q101 Qualified
