MT9V137 - 1/4-Inch Color CMOS NTSC/PAL Digital Image SOC

Product Overview

ON Semiconductor

Datasheet Details

Part number	MT9V137
Manufacturer	ON Semiconductor
File Size	1.69 MB
Description	1/4-Inch Color CMOS NTSC/PAL Digital Image SOC
Datasheet	MT9V137 Datasheet

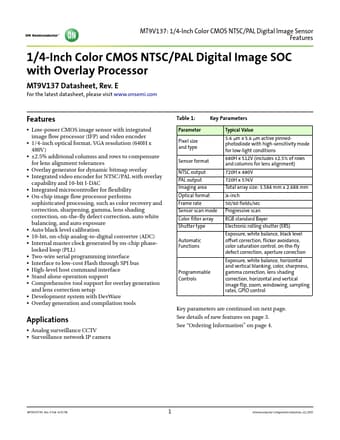

Additional preview pages of the MT9V137 datasheet.

Product details

Description

VGA 1/4" SOC VGA 1/4" CIS SOC Orderable Product Attribute Description Dry Pack with Protective Film Dry Pack without Protective Film MT9V137 DS- Rev.E Pub.4/15 EN 4 ©Semiconductor Components Industries, LLC,2015. MT9V137: 1/4-Inch Color CMOS NTSC/PAL Digital Image Sensor Table of Contents Table of Contents

Features

1/4-Inch Color CMOS NTSC/PAL Digital Image SOC with Overlay Processor MT9V137 Datasheet, Rev. E For the latest datasheet, please visit www. onsemi. com Features.
Low-power CMOS image sensor with integrated image flow processor (IFP) and video encoder.
1/4-inch optical format, VGA resolution (640H x 480V ).
±2.5% additional columns and rows to compensate for lens alignment tolerances.
Overlay generator for dynamic bitmap overlay.
Integrated video encode.
