MT9V023 - 1/3-Inch Wide-VGA CMOS Digital Image Sensor

Product Overview

ON Semiconductor

Datasheet Details

Part number	MT9V023
Manufacturer	ON Semiconductor
File Size	945.30 KB
Description	1/3-Inch Wide-VGA CMOS Digital Image Sensor
Datasheet	MT9V023 Datasheet

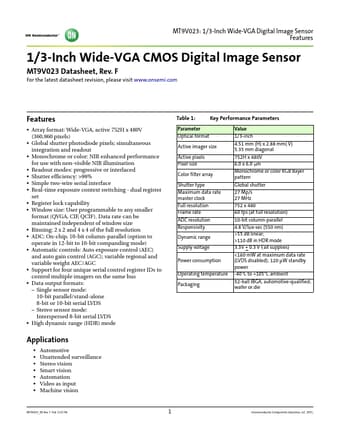

Additional preview pages of the MT9V023 datasheet.

Product details

Description

VGA 1/3" GS CIS VGA 1/3" GS CIS VGA 1/3" GS CIS VGA 1/3" GS CIS VGA 1/3" GS CIS VGA 1/3" GS CIS MT9V023: 1/3-Inch Wide-VGA Digital Image Sensor Ordering Information Orderable Product Attribute Description Dry Pack with Protective Film Dry Pack without Protective Film Tape & Reel with Protective Film Tape & Reel without Protective Film Dry Pack without Protective Film Tape & Reel with Protective Film MT9V023_DS Rev.F Pub.5/15 EN 2 ©Semiconductor Components Industries, LLC, 2015. MT9V023: 1/

Features

1/3-Inch Wide-VGA CMOS Digital Image Sensor MT9V023 Datasheet, Rev. F For the latest datasheet revision, please visit www. onsemi. com Features.
Array format: Wide-VGA, active 752H x 480V (360,960 pixels).
Global shutter photodiode pixels; simultaneous integration and readout.
Monochrome or color: NIR enhanced performance for use with non-visible NIR illumination.
Readout modes: progressive or interlaced.
Shutter efficiency: >99%.
Simple two-w.
