MT9V022I77ATM - (MT9V022I77ATM / MT9V022I77ATC) Wide VGA CMOS Digital Image Sensor

Product Overview

Micron Technology

Datasheet Details

Part number	MT9V022I77ATM
Manufacturer	Micron Technology
File Size	572.17 KB
Description	(MT9V022I77ATM / MT9V022I77ATC) Wide VGA CMOS Digital Image Sensor
Datasheet	MT9V022I77ATM Datasheet

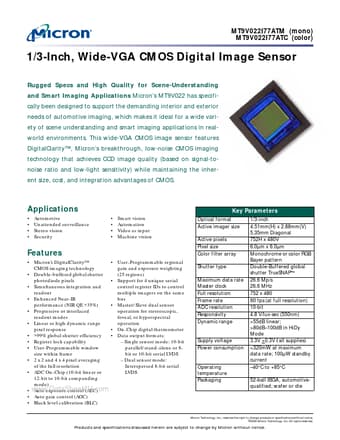

Additional preview pages of the MT9V022I77ATM datasheet.

Product details

Description

General Description The MT9V022 active imaging pixel array is 752H x 480V.It incorporates sophisticated camera functions on-chip, such as averaging 2 x 2 and 4 x 4, to improve SNR when operating in smaller resolutions, as well as windowing and column and row mirroring.It is programmable through a simple two-wire serial interface.The MT9V022 pixel response can be configured for either linear light response with >55dB of dynamic range or for high dynamic range response with as much as 100dB of

Features

DigitalClarity™, Micron’s breakthrough, low-noise CMOS imaging technology that achieves CCD image quality (based on signal-tonoise ratio and low-light sensitivity) while maintaining the inherent size, cost, and integration advantages of CMOS.
