MT9V024D, MT9V024, 1/3-Inch Wide-VGA CMOS Digital Image Sensor

1/3-Inch Wide VGA CMOS Digital Image Sensor MT9V024/D .
The MT9V024 is a 1/3. inch wide. VGA format CMOS active. pixel digital image sensor with global shutter and high dynamic range (H.

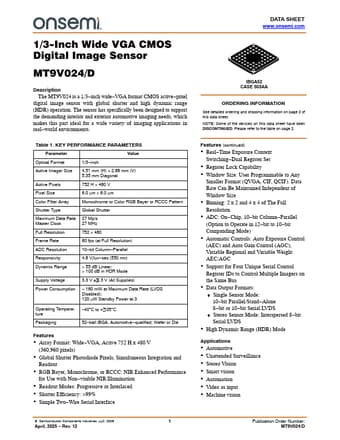

datasheet Preview Page 1 from Datasheet4u.com

MT9V024-ONSemiconductor.pdf

MT9V024D Datasheet Preview — This datasheet PDF includes multiple part numbers: MT9V024D, MT9V024. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MT9V024D, MT9V024

Manufacturer:

ON Semiconductor ↗

File Size:

646.37 KB

Description:

1/3-Inch Wide-VGA CMOS Digital Image Sensor

Note:

This datasheet PDF includes multiple part numbers: MT9V024D, MT9V024.
Please refer to the document for exact specifications by model.

Features

* Array Format: Wide
* VGA, Active 752 H x 480 V (360,960 pixels)
* Global Shutter Photodiode Pixels; Simultaneous Integration and Readout
* RGB Bayer, Monochrome, or RCCC: NIR Enhanced Performance for Use with Non
* visible NIR Illumination
* Readout Modes: Progressive o

Applications

* in real
* world environments. Table 1. KEY PERFORMANCE PARAMETERS Parameter Value Optical Format 1/3
* inch Active Imager Size 4.51 mm (H)  2.88 mm (V) 5.35 mm Diagonal Active Pixels 752 H  480 V Pixel Size 6.0 mm  6.0 mm Color Filter Array Monochrome or Color RGB Bayer o
