MUN2141 Digital Transistors

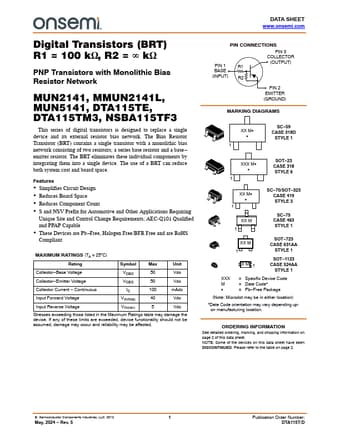

DATA SHEET www.onsemi.com Digital Transistors (BRT) R1 = 100 kW, R2 = 8 kW PNP Transistors with Monolithic Bias Resistor Network MUN2141, MMUN2141L, MUN5141, DTA115TE, DTA115TM3, NSBA115TF3 This series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor (BRT) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base emitter resistor. The BRT .

MUN2141 Features

* Simplifies Circuit Design

* Reduces Board Space

* Reduces Component Count

* S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free, Halogen Free/BFR Fr
