MUR1510G SWITCHMODE Power Rectifiers

MUR1510G Description

MUR1510G, MUR1515G, MUR1520G, MUR1540G, MUR1560G, MURF1560G, SUR81520G, SUR81560G Switch-mode Power Rectifiers These state *of *the .

MUR1510G Features

* Ultrafast 35 and 60 Nanosecond Recovery Time
* 175°C Operating Junction Temperature
* High Voltage Capability to 600 V
* ESD Ratings:
* Machine Model = C
* Human Body Model = 3B
* Low Forward Drop
* Low Leakage Specified @ 150°C Case

MUR1510G Applications

* Requiring Unique Site and Control Change Requirements; AEC
* Q101 Qualified and PPAP Capable
* All Packages are Pb
* Free
* Mechanical Characteristics:
* Case: Epoxy, Molded
* Weight: 1.9 Grams (Approximately)
* Finish: All External Surfaces Corrosion R

📥 Download Datasheet

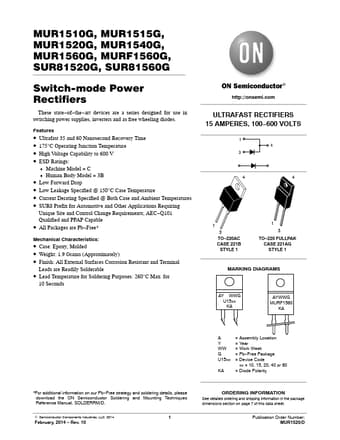

Preview of MUR1510G PDF
