MUR1515 - 15A GLASS PASSIVATED SUPERFAST RECTIFIER

Product Overview

WON-TOP

📥 Download Datasheet

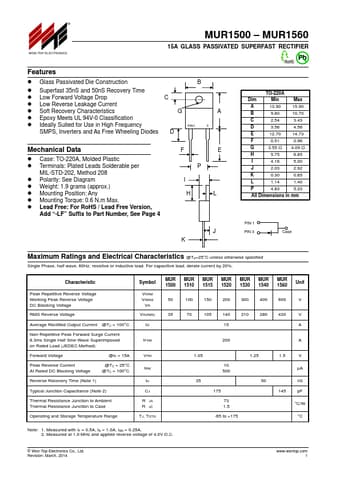

MUR1515 15A GLASS PASSIVATED SUPERFAST RECTIFIER by WON-TOP - Datasheet Preview — Datasheet preview – MUR1515

Datasheet Details

Part number	MUR1515
Manufacturer	WON-TOP
File Size	41.75 KB
Description	15A GLASS PASSIVATED SUPERFAST RECTIFIER
Datasheet	MUR1515 Datasheet
Note	This datasheet PDF includes multiple part numbers: MUR1515, MUR1500-WON. Please refer to the document for exact specifications by model.
Additional preview pages of the MUR1515 datasheet.

Product details

Features

Glass Passivated Die Construction.
Superfast 35nS and 50nS Recovery Time.
Low Forward Voltage Drop.
Low Reverse Leakage Current.
Soft Recovery Characteristics.
Epoxy Meets UL 94V-0 Classification.
Ideally Suited for Use in High Frequency SMPS, Inverters and As Free Wheeling Diodes C G D B PIN1 3 A Mechanical Data.
Case: TO-220A, Molded Plastic.
Terminals: Plated Leads Solderable per MIL-STD-202, Method 208.
Polarity: See Diagram.
Weigh.
