NB3H83905C

1.8V/2.5V/3.3V Crystal Input to 1:6 LVTTL/LVCMOS Clock Fanout Buffer

NB3H83905C Features

* Six Copies of LVTTL/LVCMOS Output Clock

* Supply Operation VDD w VDDO:

* 1.8 V$0.2 V, 2.5 V $5% or 3.3 V $5% Core VDD

* 1.8 V$0.2 V, 2.5 V $5%, or 3.3 V $5% Output VDDO

* Crystal Oscillator Interface

* Crystal Input Frequency Range: 3 MHz to 40 MHz

NB3H83905C General Description

The NB3H83905C is a 1.8 V, 2.5 V or 3.3 V VDD core Crystal input to 1:6 LVTTL/LVCMOS fanout buffer with outputs powered by flexible 1.8 V, 2.5 V, or 3.3 V supply VDDO (with VDD w VDDO). The device accepts a fundamental Parallel Resonant crystal from 3 MHz to 40 MHz or a single

*ended LVCMOS C.

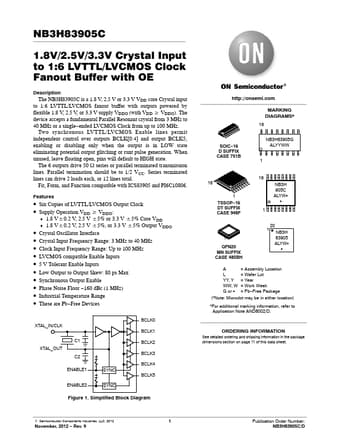

NB3H83905C Datasheet (196.82 KB)
