NB4L52 - Differential Data/Clock D Flip-Flop

NB4L52 2.5 V/3.3 V/5.0 V Differential Data/Clock D Flip-Flop with Reset Multi Level Inputs to LVPECL Translator w/ Internal Termination The NB4L52 is a differential Data and Clock D flip flop with a differential asynchronous Reset.

The differential inputs incorporate internal 50 W termination resistors and will accept PECL, LVPECL, LVCMOS, LVTTL, CML, or LVDS logic levels.

When Clock transitions from Low to High, Data will be transferred to the differential LVPECL outputs.

The di

NB4L52 Features

* Maximum Input Clock Frequency > 4 GHz Typical

* 330 ps Typical Propagation Delay

* 145 ps Typical Rise and Fall Times

* Differential LVPECL Outputs, 750 mV Peak

* to

* Peak, Typical

* Operating Range: VCC = 2.375 V to 5.5 V with VEE = 0 V

NB4L52_ONSemiconductor.pdf

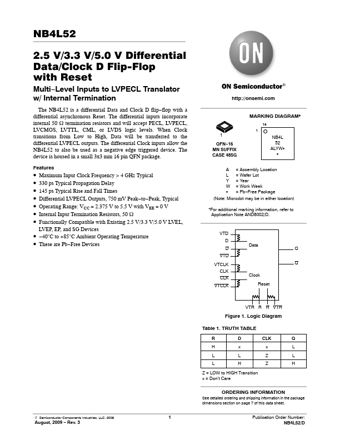

Preview of NB4L52 PDF
NB4L52 Datasheet Preview Page 2 NB4L52 Datasheet Preview Page 3

Datasheet Details

Part number:

NB4L52

Manufacturer:

ON Semiconductor ↗

File Size:

134.78 KB

Description:

Differential data/clock d flip-flop.
