NC7SP00

TinyLogic ULP-A NAND Gate

NC7SP00 Features

* Designed for 0.9 V to 3.6 V VCC Operation

* 2.4 ns tPD at 3.3 V (Typ)

* Inputs/Outputs Over

* Voltage Tolerant up to 3.6 V

* IOFF Supports Partial Power Down Protection

* Source/Sink 2.6 mA at 3.3 V

* Available in SC

* 88A and MicroPak™ P

NC7SP00 Datasheet (164.42 KB)

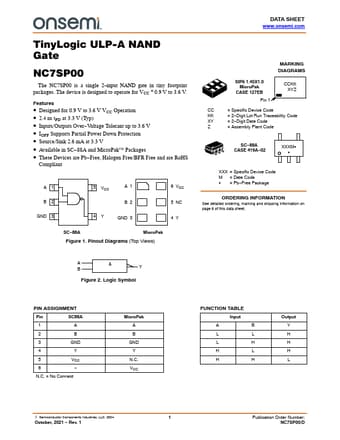

Preview of NC7SP00 PDF

Datasheet Details

Part number:

NC7SP00

Manufacturer:

ON Semiconductor ↗

File Size:

164.42 KB

Description:

Tinylogic ulp-a nand gate.
TinyLogic ULP-A NAND Gate NC7SP00 The NC7SP00 is a single 2

*input NAND gate in tiny footprint packages. The device is designed to operate for .
