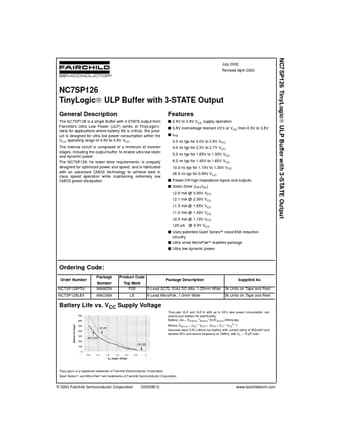

Description
The NC7SP126 is a single Buffer with 3-STATE output from Fairchild’s Ultra Low Power (ULP) series of TinyLogic.
Features
- s 0.9V to 3.6V VCC supply operation s 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V s tPD 3.0 ns typ for 3.0V to 3.6V VCC 4.0 ns typ for 2.3V to 2.7V VCC 5.0 ns typ for 1.65V to 1.95V VCC 6.0 ns typ for 1.40V to 1.60V VCC 10.0 ns typ for 1.10V to 1.30V VCC 26.0 ns typ for 0.90V VCC s Power-Off high impedance inputs and outputs s Static Drive (IOH/IOL)
±2.6 mA @ 3.00V VCC ±2.1 mA @ 2.30V VCC ±1.5 mA @ 1.65V VCC ±1.0 mA @ 1.40V VCC ±0.5 mA @ 1.10V VCC ±20 µA @ 0.9V VCC
s Uses patented.
