NC7SP05 - TinyLogic ULP-A Inverter

NC7SP05 Description

TinyLogic ULP-A Inverter (Open-Drain Output) NC7SP05 The NC7SP05 is a single inverter with open *drain output in tiny footprint packages.The .

NC7SP05 Features

* Designed for 0.9 V to 3.6 V VCC Operation
* 3.2 ns tPD at 3.3 V (Typ)
* Inputs/Outputs Over
* Voltage Tolerant up to 3.6 V
* IOFF Supports Partial Power Down Protection
* Source/Sink 2.6 mA at 3.3 V
* Available in SC
* 88A and MicroPak™ P

📥 Download Datasheet

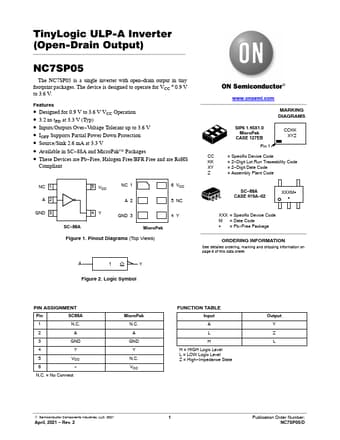

Preview of NC7SP05 PDF
datasheet Preview Page 2 datasheet Preview Page 3
