NCP1071 Datasheet, Switcher, ON Semiconductor

NCP1071 Features

  • Switcher include: a timer to detect an overload or a short
  • circuit event, Overvoltage Protection with auto
  • recovery and AC input line voltage detection. For improved standby perf

PDF File Details

Part number:

NCP1071

Manufacturer:

ON Semiconductor ↗

File Size:

959.83kb

Download:

📄 Datasheet

Description:

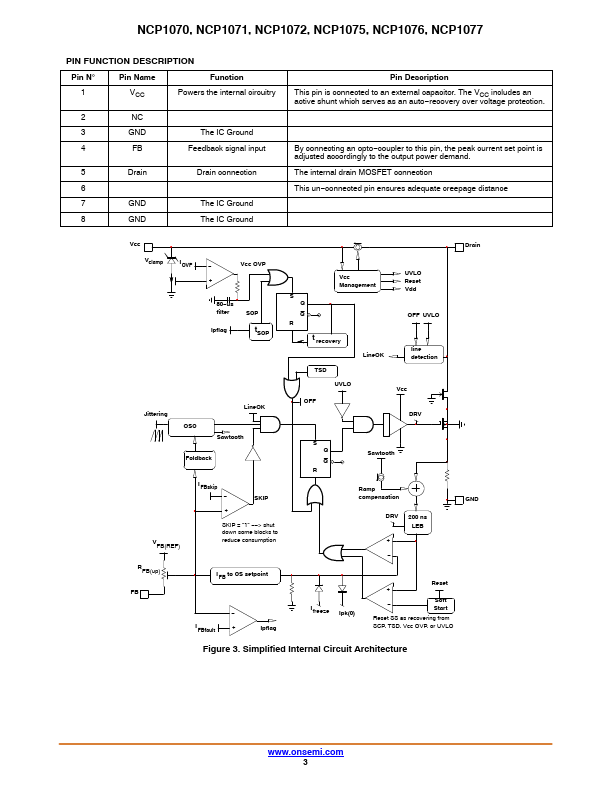

High-voltage switcher. Pin N5 Pin Name Function 1 VCC Powers the internal circuitry 2 NC 3 GND The IC Ground 4 FB Feedback signal input 5 Dr

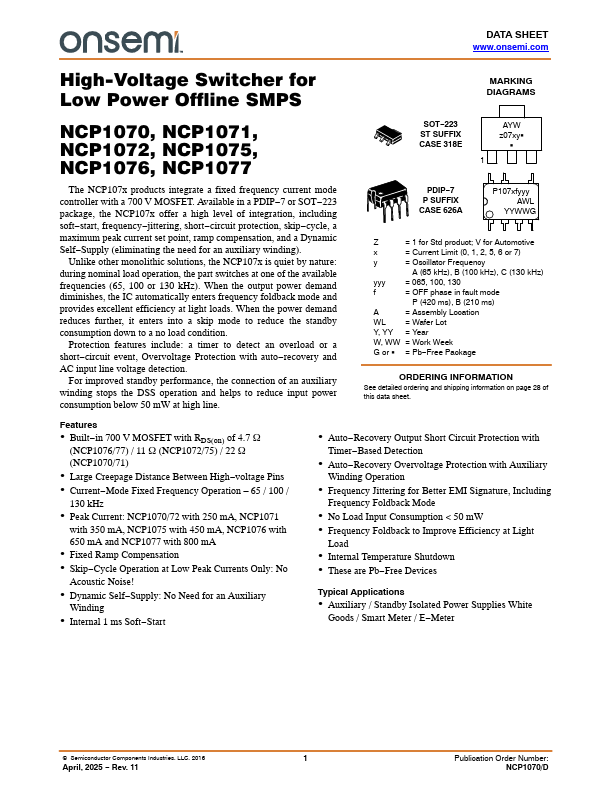

Datasheet Preview: NCP1071 📥 Download PDF (959.83kb)

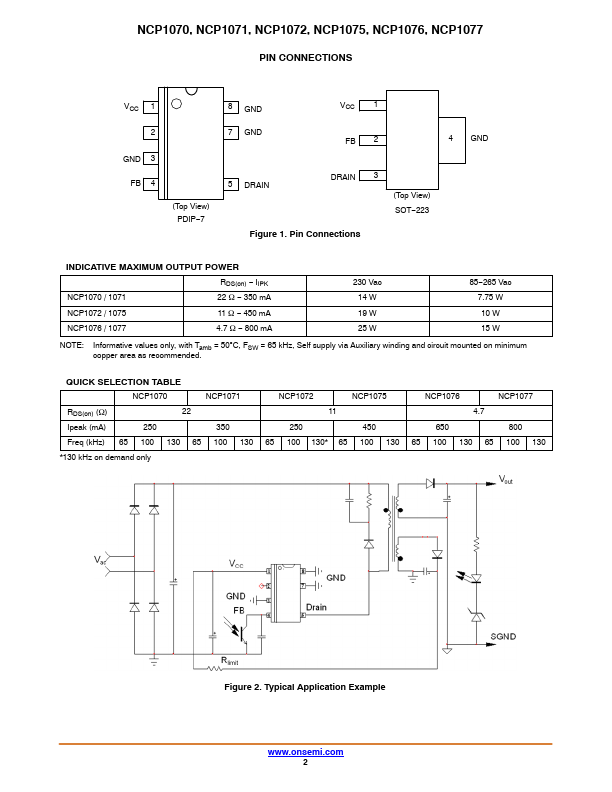

Page 2 of NCP1071 Page 3 of NCP1071

NCP1071 Application

  • Applications
  • Auxiliary / Standby Isolated Power Supplies White Goods / Smart Meter / E
  • Meter  Semiconductor Components Industrie
