NCP1232 - Microprocessor Monitor

Description

Push-button Reset Input.

A debounced active-low input that ignores pulses less than 1 msec in duration and is guaranteed to recognize inputs of 20 msec or greater.

Time Delay Set.

Features

  • Precision Voltage Monitor (Adjustable +4.5 V or +4.75 V).
  • Reset Pulse Width (250 msec Min).
  • No External Components.
  • Adjustable Watchdog Timer (150 msec, 600 msec or 1.2 sec).
  • Debounced Manual Reset Input for External Override.

📥 Download Datasheet

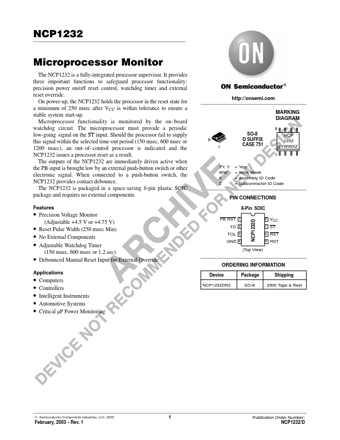

Datasheet preview – NCP1232

Datasheet Details

Part number NCP1232
Manufacturer ON
File Size 94.94 KB
Description Microprocessor Monitor
Datasheet download datasheet NCP1232 Datasheet
Additional preview pages of the NCP1232 datasheet.

📁 Similar Datasheet

  • NCP1230 - Low Standby Power High Performance PWM Controller (ON Semiconductor)
  • NCP1230A - Low-Standby Power Soft Skip Mode Controller (ON Semiconductor)
  • NCP1231 - Low Standby Power High Performance PWM Controller (ON Semiconductor)
  • NCP1234 - Fixed Frequency Current Mode Controller (ON Semiconductor)
  • NCP1235 - Fixed Frequency Current Mode Controller (ON Semiconductor)
  • NCP1236 - Fixed Frequency Controller (ON Semiconductor)
  • NCP1237 - Fixed Frequency Current Mode Controller (ON Semiconductor)
  • NCP1238 - Fixed-Frequency Controller (ON Semiconductor)
  • NCP1239 - Fixed Frequency Current-Mode Controller (ON Semiconductor)
  • NCP120 - Very Low Dropout Bias Rail CMOS Voltage Regulator (ON Semiconductor)
Other Datasheets by ON
  • NCP1212 - Current Mode PWM Controller
  • NCP1215 - Low Cost Variable OFF Time Switched Mode Power Supply Controller
  • NCP1216 - PWM Current-Mode Controller
  • NCP1225 - Low Standby Power SMPS Controller
  • NCP1280 - Active Clamp Voltage Mode PWM Controller
  • NCP1030 - Integrated DC-DC Converter
  • NCP1031 - Integrated DC-DC Converter
  • NCP1086 - 1.5A Adjustable and 3.3V Fixed Output Linear Regulator

Full PDF Text Transcription

Click to expand full text
NCP1232 Microprocessor Monitor The NCP1232 is a fully-integrated processor supervisor. It provides three important functions to safeguard processor functionality: precision power on/off reset control, watchdog timer and external reset override. On power-up, the NCP1232 holds the processor in the reset state for a minimum of 250 msec after VCC is within tolerance to ensure a stable system start-up. Microprocessor functionality is monitored by the on- board watchdog circuit. The microprocessor must provide a periodic low-going signal on the ST input. Should the processor fail to supply this signal within the selected time-out period (150 msec, 600 msec or 1200 msec), an out- of- control processor is indicated and the NCP1232 issues a processor reset as a result.
