NCP1077 - High-Voltage Switcher

This page provides the datasheet information for the NCP1077, a member of the NCP1070 High-Voltage Switcher family.

Description

Pin Description This pin is connected to an external capacitor.

Features

  • include: a timer to detect an overload or a short.
  • circuit event, Overvoltage Protection with auto.
  • recovery and AC input line voltage detection. For improved standby performance, the connection of an auxiliary winding stops the DSS operation and helps to reduce input power consumption below 50 mW at high line. PDIP.
  • 7 P SUFFIX CASE 626A P107xfyyy AWL YYWWG Z = 1 for Std product; V for Automotive x = Current Limit (0, 1, 2, 5, 6 or 7) y = Oscillator Frequency = A (6.

📥 Download Datasheet

Datasheet preview – NCP1077

Datasheet Details

Part number NCP1077
Manufacturer ON Semiconductor
File Size 0.97 MB
Description High-Voltage Switcher
Datasheet download datasheet NCP1077 Datasheet

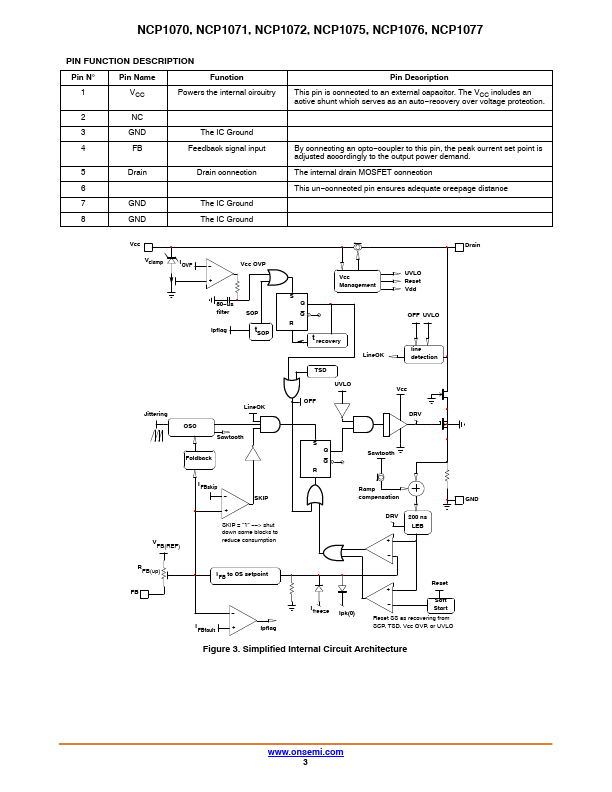

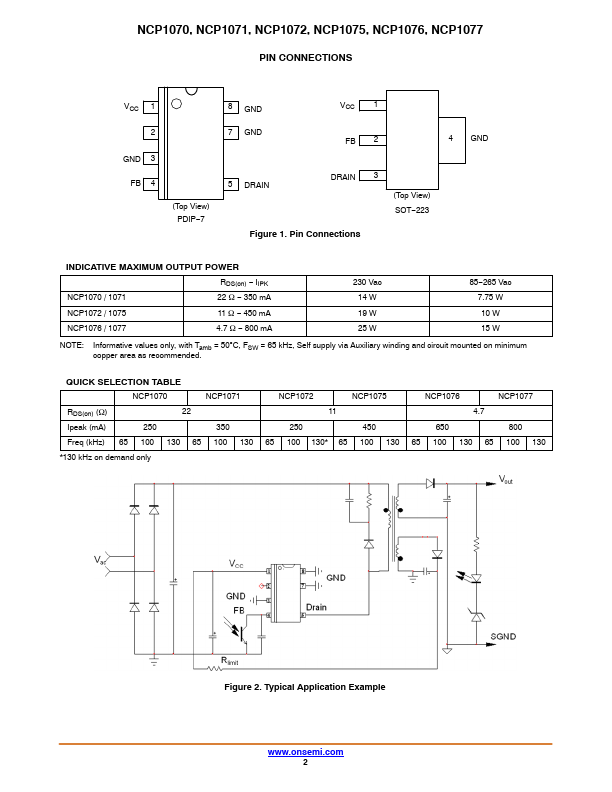

Additional preview pages of the NCP1077 datasheet.

📁 Similar Datasheet

  • NCP1030 - Integrated DC-DC Converter (ON)
  • NCP1031 - Integrated DC-DC Converter (ON)
  • NCP1086 - 1.5A Adjustable and 3.3V Fixed Output Linear Regulator (ON)
  • NCP1212 - Current Mode PWM Controller (ON)
  • NCP1215 - Low Cost Variable OFF Time Switched Mode Power Supply Controller (ON)
  • NCP1216 - PWM Current-Mode Controller (ON)
  • NCP1225 - Low Standby Power SMPS Controller (ON)
  • NCP1232 - Microprocessor Monitor (ON)
  • NCP1280 - Active Clamp Voltage Mode PWM Controller (ON)
  • NCP1410 - 250 mA Sync-Rect PFM Step-Up DC-DC Converter (ON)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text

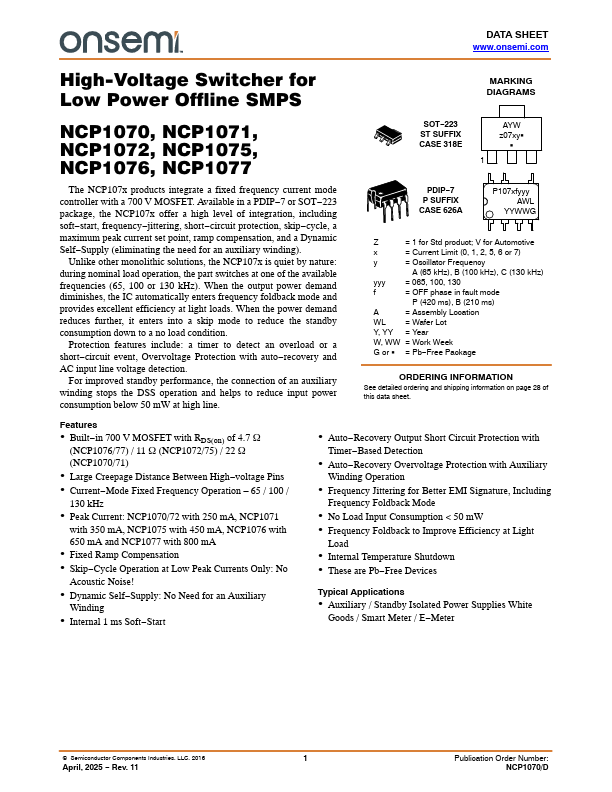

DATA SHEET www.onsemi.com High-Voltage Switcher for Low Power Offline SMPS MARKING DIAGRAMS NCP1070, NCP1071, NCP1072, NCP1075, NCP1076, NCP1077 SOT−223 ST SUFFIX CASE 318E AYW z07xyG G 1 The NCP107x products integrate a fixed frequency current mode controller with a 700 V MOSFET. Available in a PDIP−7 or SOT−223 package, the NCP107x offer a high level of integration, including soft−start, frequency−jittering, short−circuit protection, skip−cycle, a maximum peak current set point, ramp compensation, and a Dynamic Self−Supply (eliminating the need for an auxiliary winding). Unlike other monolithic solutions, the NCP107x is quiet by nature: during nominal load operation, the part switches at one of the available frequencies (65, 100 or 130 kHz).
