NCP120

Very Low Dropout Bias Rail CMOS Voltage Regulator

NCP120 Features

* low IQ consumption. The XDFN6 1.2 mm x 1.2 mm package is optimized for use in space constrained applications. Features

* Input Voltage Range: 0.8 V to 5.5 V

* Bias Voltage Range: 2.4 V to 5.5 V

* Fixed Output Voltage Device

* Output Voltage Range: 0.8 V to 2.1 V

NCP120 General Description

Pin No. Pin Name Description 1 OUT Regulated Output Voltage pin 2 N/C Not internally connected 3 EN Enable pin. Driving this pin high enables the regulator. Driving this pin low puts the regulator into shutdown mode. 4 BIAS Bias voltage supply for internal control circuits. This pin is.

NCP120 Datasheet (234.20 KB)

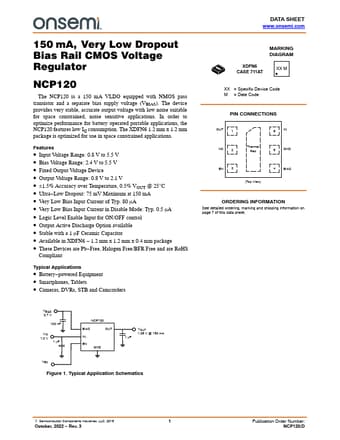

Preview of NCP120 PDF

Datasheet Details

Part number:

NCP120

Manufacturer:

ON Semiconductor ↗

File Size:

234.20 KB

Description:

Very low dropout bias rail cmos voltage regulator.
150 mA, Very Low Dropout Bias Rail CMOS Voltage Regulator NCP120 The NCP120 is a 150 mA VLDO equipped with NMOS pass transistor and a separate bias su.
