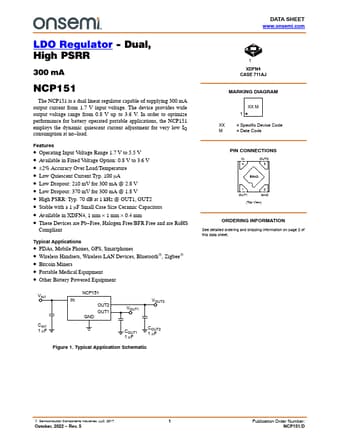

NCP151 LDO Regulator

Pin No. XDFN4 Pin Name Description 4 IN Input voltage supply pin. 1 OUT1 Regulated output voltage. The output should be bypassed with small 1 mF ceramic capacitor. 3 OUT2 Regulated output voltage. The output should be bypassed with small 1 mF ceramic capacitor. 2 GND Common ground con.

NCP151 Features

* Operating Input Voltage Range 1.7 V to 5.5 V

* Available in Fixed Voltage Option: 0.8 V to 3.6 V

* ±2% Accuracy Over Load/Temperature

* Low Quiescent Current Typ. 100 mA

* Low Dropout: 210 mV for 300 mA @ 2.8 V

* Low Dropout: 370 mV for 300 mA @ 1.8
