NCP164 LDO Regulator

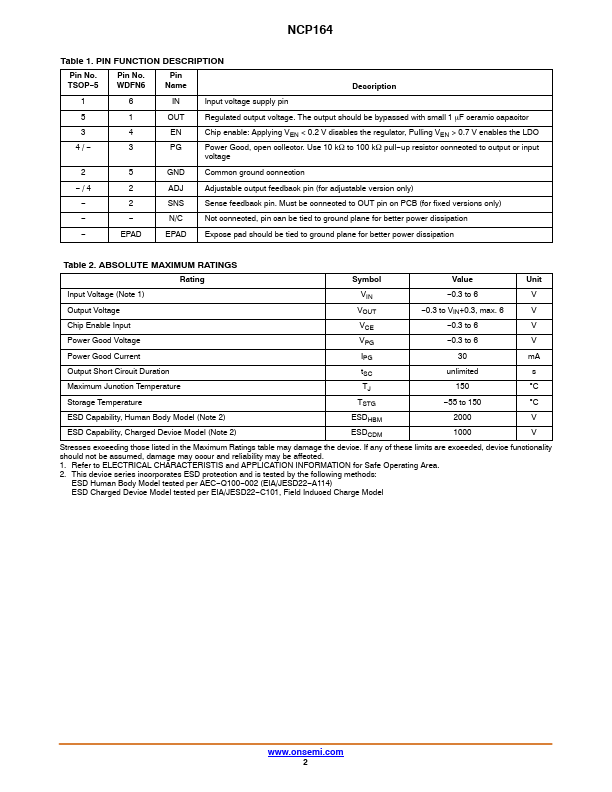

Pin No. TSOP *5 Pin No. WDFN6 Pin Name Description 1 6 IN Input voltage supply pin 5 1 OUT Regulated output voltage. The output should be bypassed with small 1 mF ceramic capacitor 3 4 EN Chip enable: Applying VEN < 0.2 V disables the regulator, Pulling VEN > 0.7 V enables the .

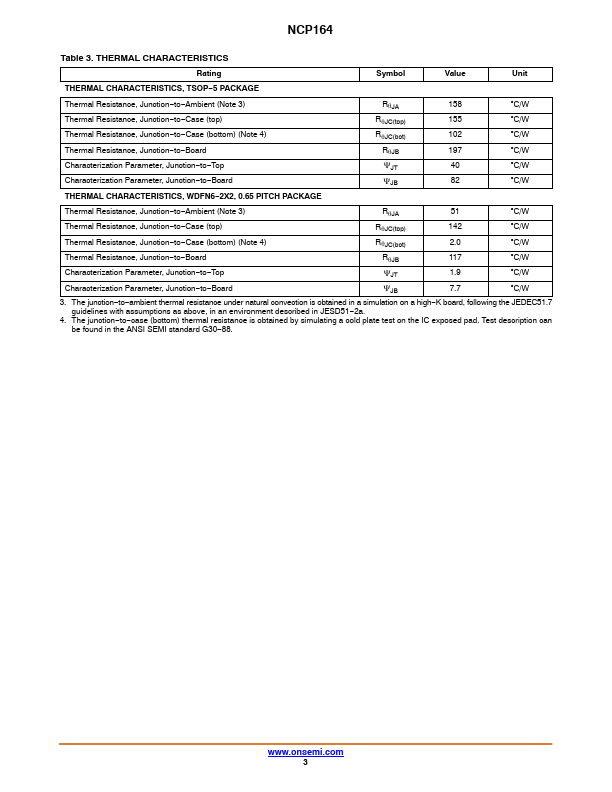

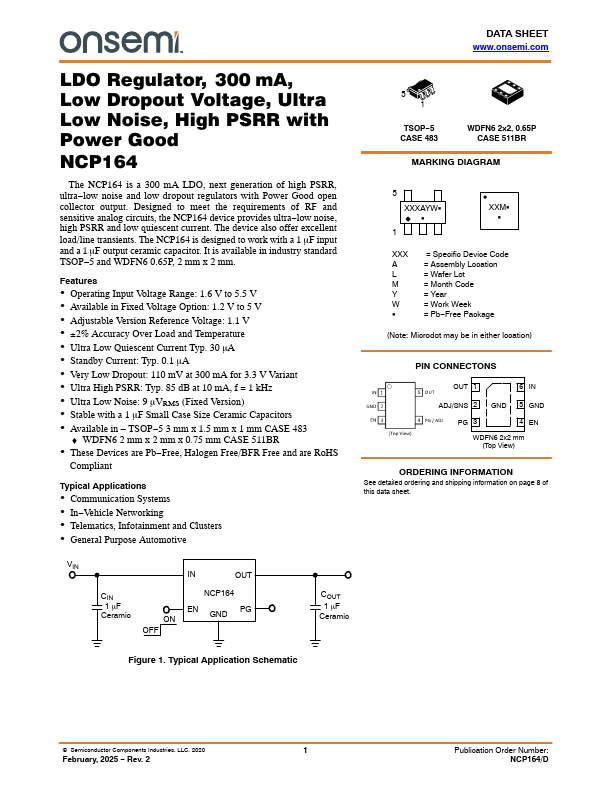

DATA SHEET www.onsemi.com LDO Regulator, 300 mA, Low Dropout Voltage, Ultra Low Noise, High PSRR with Power Good NCP164 The NCP164 is a 300 mA LDO, next generation of high PSRR, ultra low noise and low dropout regulators with Power Good open collector output. Designed to meet the requirements of RF and sensitive analog circuits, the NCP164 device provides ultra low noise, high PSRR and low quiescent current. The device also offer excellent load/line transients. The NCP164 is des.

NCP164 Features

* Operating Input Voltage Range: 1.6 V to 5.5 V

* Available in Fixed Voltage Option: 1.2 V to 5 V

* Adjustable Version Reference Voltage: 1.1 V

* 2% Accuracy Over Load and Temperature

* Ultra Low Quiescent Current Typ. 30 mA

* Standby Current: Typ. 0.1 mA

* Very Low Drop

NCP164 Datasheet (488.70 KB)
