NCP1652 High-Efficiency Single Stage Power Factor Correction

Pin 16 Pin 1 2 20 Pin 1 2 Symbol CT RAMP COMP Description An external timing capacitor (CT) sets the oscillator frequency. A sawtooth between 0.2 V and 4 V sets the oscillator frequency and the gain of the multiplier. A resistor (RRC) between this pin and ground adjust the amount of ramp compensatio.

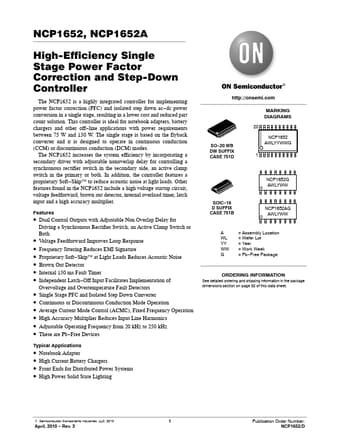

NCP1652, NCP1652A High-Efficiency Single Stage Power Factor Correction and Step-Down Controller The NCP1652 is a highly integrated controller for implementing power factor correction (PFC) and isolated step down ac dc power conversion in a single stage, resulting in a lower cost and reduced part count solution. This controller is ideal for notebook adapters, battery chargers and other off line applications with power requirements between 75 W and 150 W. The single stage is based .

NCP1652 Features

* a proprietary Soft

* Skip™ to reduce acoustic noise at light loads. Other features found in the NCP1652 include a high voltage startup circuit, voltage feedforward, brown out detector, internal overload timer, latch input and a high accuracy multiplier. Features http://onsemi.com MARKING DIAGR
