NCP333 - 1.5A Ultra-Small Controlled Load Switch

Datasheet Summary

Description

pin, allowing optimization of battery life, and portable device autonomy.

Indeed, thanks to a current consumption optimization with PMOS structure, leakage currents are eliminated by isolating connected IC’s on the battery when not used.

Features

  • 1.2 V.
  • 5.5 V Operating Range.
  • 55 mW P MOSFET at 3.3 V.
  • DC Current up to 1.5 A.
  • Output Auto.
  • Discharge.
  • Active High EN Pin.
  • WLCSP4 0.76 x 0.76 mm.
  • This Device is Pb.
  • Free, Halogen Free/BFR Free and is RoHS Compliant.

📥 Download Datasheet

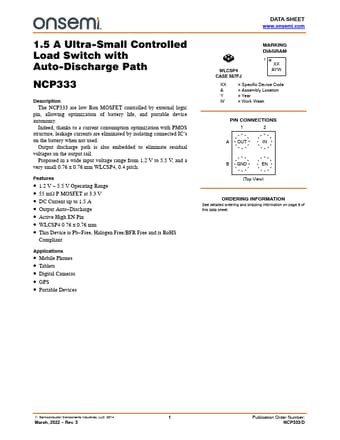

Datasheet preview – NCP333

Datasheet Details

Part number NCP333
Manufacturer ON Semiconductor
File Size 305.44 KB
Description 1.5A Ultra-Small Controlled Load Switch
Datasheet download datasheet NCP333 Datasheet
Additional preview pages of the NCP333 datasheet.

📁 Similar Datasheet

Other Datasheets by ON Semiconductor
  • NCP3334 - Adjustable Low Dropout Regulator
  • NCP3334A - Low Dropout Regulator
  • NCP3335 - Low Dropout Regulator
  • NCP3335A - Low Dropout Regulator
  • NCP3337 - Power Good Low Dropout Regulator
  • NCP330 - Soft-Start Controlled Load Switch
  • NCP334 - 2A Ultra-Small Controlled Load Switch
  • NCP335 - 2A Ultra-Small Controlled Load Switch

Full PDF Text Transcription

Click to expand full text
1.5 A Ultra-Small Controlled Load Switch with Auto-Discharge Path NCP333 Description The NCP333 are low Ron MOSFET controlled by external logic pin, allowing optimization of battery life, and portable device autonomy. Indeed, thanks to a current consumption optimization with PMOS structure, leakage currents are eliminated by isolating connected IC’s on the battery when not used. Output discharge path is also embedded to eliminate residual voltages on the output rail. Proposed in a wide input voltage range from 1.2 V to 5.5 V, and a very small 0.76 x 0.76 mm WLCSP4, 0.4 pitch. Features • 1.2 V − 5.5 V Operating Range • 55 mW P MOSFET at 3.3 V • DC Current up to 1.5 A • Output Auto−Discharge • Active High EN Pin • WLCSP4 0.76 x 0.
