NCP435, NCP434 Datasheet - ON Semiconductor

NCP435 2A Ultra-Small Controlled Load Switch

Pin Name Pin Number Type IN A2 POWER GND EN OUT B1 POWER B2 INPUT A1 OUTPUT Description Load *switch input voltage; connect a 1 mF or greater ceramic capacitor from IN to GND as close as possible to the IC. Ground connection. Enable input, logic high turns on power switch. Load *.

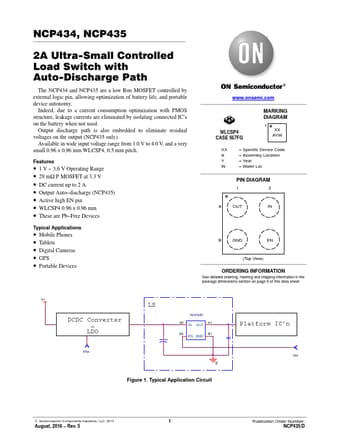

NCP434, NCP435 2A Ultra-Small Controlled Load Switch with Auto-Discharge Path The NCP434 and NCP435 are a low Ron MOSFET controlled by external logic pin, allowing optimization of battery life, and portable device autonomy. Indeed, due to a current consumption optimization with PMOS structure, leakage currents are eliminated by isolating connected IC’s on the battery when not used. Output discharge path is also embedded to eliminate residual voltages on the output (NCP435 only). Available in wi.

NCP435 Features

* 1 V

* 3.6 V Operating Range

* 29 mW P MOSFET at 3.3 V

* DC current up to 2 A

* Output Auto

* discharge (NCP435)

* Active high EN pin

* WLCSP4 0.96 x 0.96 mm

* These are Pb

* Free Devices Typical Applications

* Mobi
