NCP4350 - Supervisory IC

ON Semiconductor

The NCP4350 by ON Semiconductor is a Supervisory IC. Below is the official datasheet preview.

📥 Download Datasheet

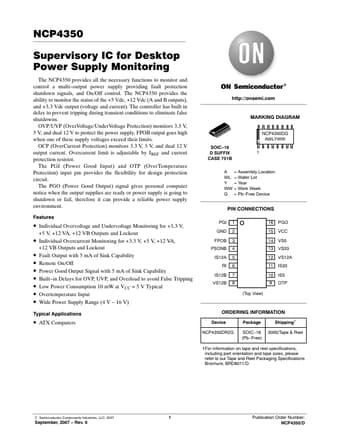

NCP4350 Supervisory IC by ON Semiconductor - Datasheet Preview — Official preview page of the **NCP4350** Supervisory IC datasheet (ON Semiconductor).

Datasheet Details

Part number	NCP4350
Manufacturer	ON Semiconductor
File Size	130.12 KB
Description	Supervisory IC
Datasheet	NCP4350-ONSemiconductor.pdf
Additional preview pages of the NCP4350 datasheet.

NCP4350 Product details

Description

Pin Pin# PGI 1 GND 2 FPOB 3 PSONB 4 IS12A 5 RI 6 IS12B 7 VS12B 8 OTP 9 IS5 10 IS33 11 VS12A 12 VS33 13 VS5 14 +VCC PGO 15 16 Description The pin is used for a power good input signal.Ground This is an open drain output for Fault protection shutdown.This pin is used for a REMOTE on/off switch input and acts as a reset signal after a fault condition.This pin is an input to the +12 VA output current monitoring comparator.A resistor to ground sets the IREF current for

Features

ăIndividual Overvoltage and Undervoltage Monitoring for +3.3ĂV, +5ĂV, +12ĂVA, +12ĂVB Outputs and Lockout.
ăIndividual Overcurrent Monitoring for +3.3ĂV, +5ĂV, +12ĂVA, +12ĂVB Outputs and Lockout.
ăFault Output with 5 mA of Sink Capability.
ăRemote On/Off.
ăPower Good Output Signal with 5 mA of Sink Capability.
ăBuilt-in Delays for OVP, UVP, and Overload to avoid False Tripping.
ăLow Power Consumption 10 mW at VCC = 5ĂV Typical.
ăOve.
