NCP4523 - CMOS 3CH-LDOs

ON Semiconductor

The NCP4523 by ON Semiconductor is a CMOS 3CH-LDOs. Below is the official datasheet preview.

📥 Download Datasheet

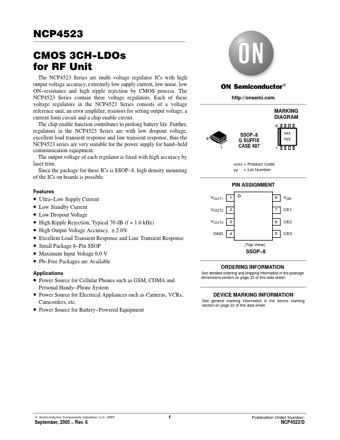

NCP4523 CMOS 3CH-LDOs by ON Semiconductor - Datasheet Preview — Official preview page of the **NCP4523** CMOS 3CH-LDOs datasheet (ON Semiconductor).

Datasheet Details

Part number	NCP4523
Manufacturer	ON Semiconductor
File Size	136.39 KB
Description	CMOS 3CH-LDOs
Datasheet	NCP4523_ONSemiconductor.pdf
Additional preview pages of the NCP4523 datasheet.

NCP4523 Product details

Description

Pin Number NCP4523G SSOP 8 Symbol 1 VOUT1 2 VOUT2 3 VOUT3 4 GND 5 CE3 6 CE2 7 CE1 8 VDD Output Pin Output Pin Output Pin Ground Pin Chip Enable Pin Chip Enable Pin Chip Enable Pin Input Pin Description ABSOLUTE MAXIMUM RATINGS Rating Symbol Value Unit Input Voltage Input Voltage (CE Pin) Output Voltage Output Current (VOUT1) Output Current (VOUT2) Output Current (VOUT3) Power Dissipation Operating Temperature Range Storage Temperature Range Electrostatic Discharge Sensitiv

Features

Ultra.
Low Supply Current.
Low Standby Current.
Low Dropout Voltage.
High Ripple Rejection, Typical 70 dB (f = 1.0 kHz).
High Output Voltage Accuracy, "2.0%.
Excellent Load Transient Response and Line Transient Response.
Small Package 8.
Pin SSOP.
Maximum Input Voltage 6.0 V.
Pb.
Free Packages are Available.
