NCP81071

Dual 5A High Speed Low-Side MOSFET Drivers

NCP81071 Features

* High Current Drive Capability ±5 A

* TTL/CMOS Compatible Inputs Independent of Supply Voltage

* Industry Standard Pin

* out

* High Reverse Current Capability (6 A) Peak

* Enable Functions for Each Driver

* 8 ns Typical Rise and 8 ns Typical Fal

NCP81071 General Description

Pin No. Symbol Description 1 ENA Enable input for the driver channel A with logic compatible threshold and hysteresis. This pin is used to en- able and disable the driver output. It is internally pulled up to VDD with a 200 kW resistor for active high op- eration. The output of the pin when t.

NCP81071 Datasheet (509.55 KB)

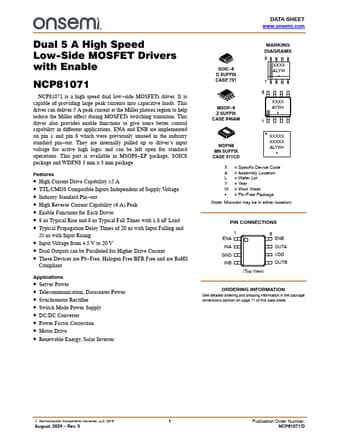

Preview of NCP81071 PDF

Datasheet Details

Part number:

NCP81071

Manufacturer:

ON Semiconductor ↗

File Size:

509.55 KB

Description:

Dual 5a high speed low-side mosfet drivers.
Dual 5 A High Speed Low-Side MOSFET Drivers with Enable NCP81071 NCP81071 is a high speed dual low

*side MOSFETs driver. It is capable of provi.
