NCS1002 - Constant Voltage/Constant Current Secondary-Side Controller

Datasheet Summary

Description

Power Supply (SMPS) applications requiring a dual control loop to perform Constant Voltage (CV) and Constant Current (CC) regulation.

The NCS1002 integrates a 2.5 V voltage reference and two precision op amps.

Features

  • Low Input Offset Voltage: 0.5 mV, Typ.
  • Input Common-Mode Range includes Ground.
  • Low Quiescent Current: 300 mA per Op Amp at VCC = 5 V.
  • Large Output Voltage Swing.
  • Wide Power Supply Range: 3 V to 32 V.
  • High ESD Protection: 2 kV.
  • These are Pb.
  • Free Devices Typical.

📥 Download Datasheet

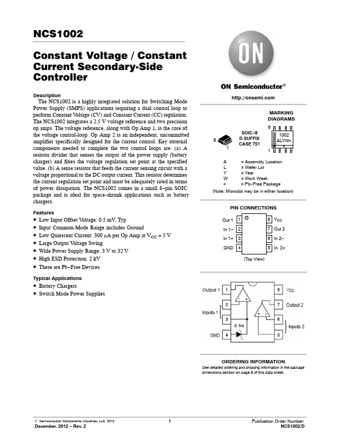

Datasheet preview – NCS1002

Datasheet Details

Part number NCS1002
Manufacturer ON Semiconductor
File Size 276.15 KB
Description Constant Voltage/Constant Current Secondary-Side Controller
Datasheet download datasheet NCS1002 Datasheet
Additional preview pages of the NCS1002 datasheet.

📁 Similar Datasheet

Other Datasheets by ON Semiconductor
  • NCS1002A - Constant Voltage/Constant Current Secondary-Side Controller
  • NCS12802 - 12-Channel I2C Programmable Gamma Voltage Reference Generator
  • NCS199A1 - Current-Shunt Monitor
  • NCS199A1R - Current-Shunt Monitors
  • NCS199A2 - Current-Shunt Monitor
  • NCS199A2R - Current-Shunt Monitors
  • NCS199A3 - Current-Shunt Monitor
  • NCS199A3R - Current-Shunt Monitors

Full PDF Text Transcription

Click to expand full text
NCS1002 Constant Voltage / Constant Current Secondary­Side Controller Description The NCS1002 is a highly integrated solution for Switching Mode Power Supply (SMPS) applications requiring a dual control loop to perform Constant Voltage (CV) and Constant Current (CC) regulation. The NCS1002 integrates a 2.5 V voltage reference and two precision op amps. The voltage reference, along with Op Amp 1, is the core of the voltage control-loop. Op Amp 2 is an independent, uncommitted amplifier specifically designed for the current control. Key external components needed to complete the two control loops are: (a) A resistor divider that senses the output of the power supply (battery charger) and fixes the voltage regulation set point at the specified value.
