NCS12802 Datasheet - ON Semiconductor

NCS12802 12-Channel I2C Programmable Gamma Voltage Reference Generator

Pin Name Type Description 1 OUT6 Output Gamma Correction Reference Voltages * Channel 6 2 OUT5 Output Gamma Correction Reference Voltages * Channel 5 3 OUT4 Output Gamma Correction Reference Voltages * Channel 4 4 OUT3 Output Gamma Correction Reference Voltage.
NCS12802 12-Channel I2C Programmable Gamma Voltage Reference Generator with Integrated Auto-read The NCS12802 is a 12 channel programmable voltage reference generator providing the gamma correction references to the TFT LCD panel through the source driver circuit. The twelve output voltage references are programmed through an I2C interface which can operate at standard and high speed. The output buffers can be finely tuned due to the 10 bit DAC precision (1024 steps). In additio.

NCS12802 Features

* an auto

* read function which allows uploading binary data from an external EEPROM. To support this capability, the device can act as both slave and master I2C. In order to accelerate the dynamic correction process, the NCS12802 has two separate register banks. It can simultaneously store two

NCS12802 Datasheet (1.00 MB)

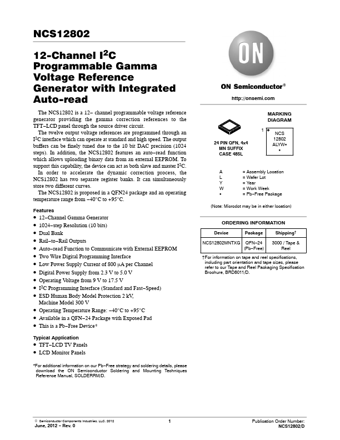

Preview of NCS12802 PDF
NCS12802 Datasheet Preview Page 2 NCS12802 Datasheet Preview Page 3

Datasheet Details

Part number:

NCS12802

Manufacturer:

ON Semiconductor ↗

File Size:

1.00 MB

Description:

12-channel i2c programmable gamma voltage reference generator.
