NCS199A3R, NCS199A1R - Current-Shunt Monitors

ON Semiconductor

📥 Download Datasheet

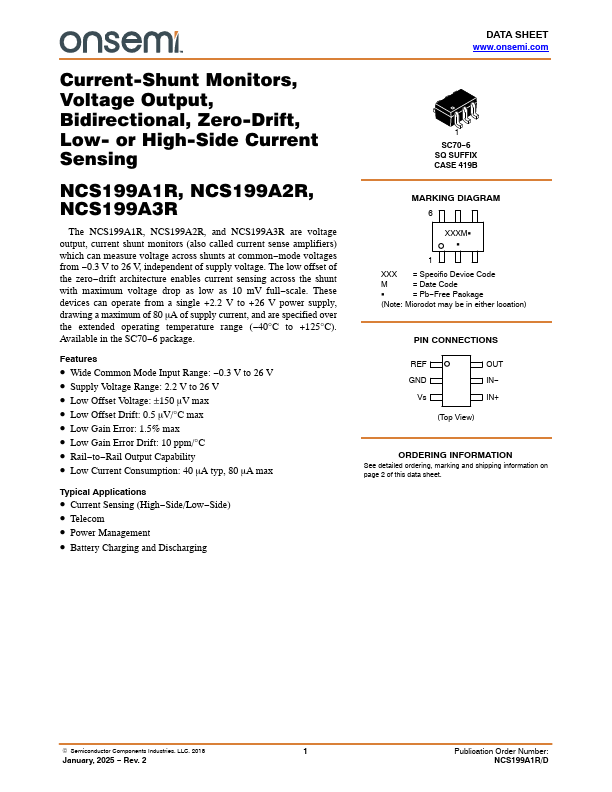

NCS199A3R Datasheet Preview — This datasheet PDF includes multiple part numbers: NCS199A3R, NCS199A1R. Please refer to the document for exact specifications by model.

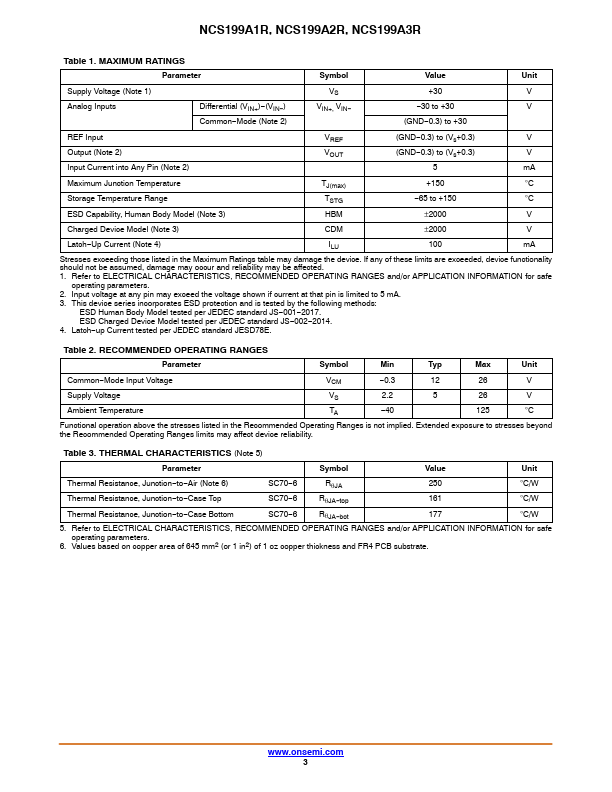

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NCS199A3R, NCS199A1R
Manufacturer	ON Semiconductor ↗
File Size	627.93 KB
Description	Current-Shunt Monitors
Datasheet	NCS199A1R-ONSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: NCS199A3R, NCS199A1R. Please refer to the document for exact specifications by model.

NCS199A3R Product details

Features

Wide Common Mode Input Range:.
0.3 V to 26 V.
Supply Voltage Range: 2.2 V to 26 V.
Low Offset Voltage: ±150 mV max.
Low Offset Drift: 0.5 mV/°C max.
Low Gain Error: 1.5% max.
Low Gain Error Drift: 10 ppm/°C.
Rail.
to.
Rail Output Capability.
Low Current Consumption: 40 mA typ, 80 mA max Typical.
