NCS20162 Datasheet - ON Semiconductor

NCS20162 CMOS Operational Amplifier

8 MHz, Rail-To-Rail, CMOS Operational Amplifier NCS20161, NCS20162, NCS20164, NCV20161, NCV20162, NCV20164 The NCS20161, NCS20162, and NCS20164 are a family of single, dual and quad operational amplifiers (op amps) that provide 8 MHz gain bandwidth product while consuming 500 mA of quiescent current per channel. The NCS2016x has an input offset voltage of 0.3 mV and operates from 1.8 V to 5.5 V supply over a wide temperature range ( 40°C to 125°C). The rail to rai.

NCS20162 Features

* Gain

* Bandwidth Product: 8 MHz

* Low Supply Current per Channel: 500 mA typ (VS = 5.5 V)

* Low Input Offset Voltage: ±0.3 mV

* Wide Supply Range: 1.8 V to 5.5 V

* Wide Temperature Range:

* 40°C to +125°C

* Rail

* to

* Rail I

NCS20162 Datasheet (344.05 KB)

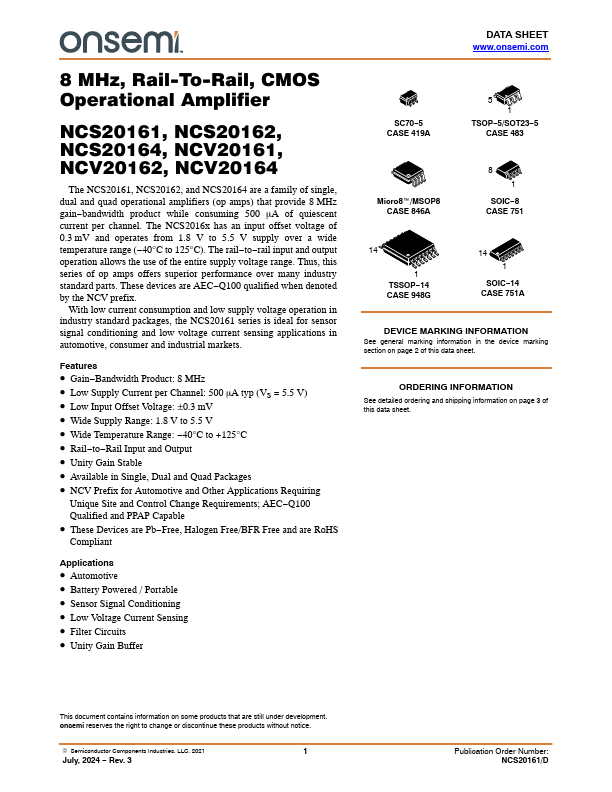

Preview of NCS20162 PDF

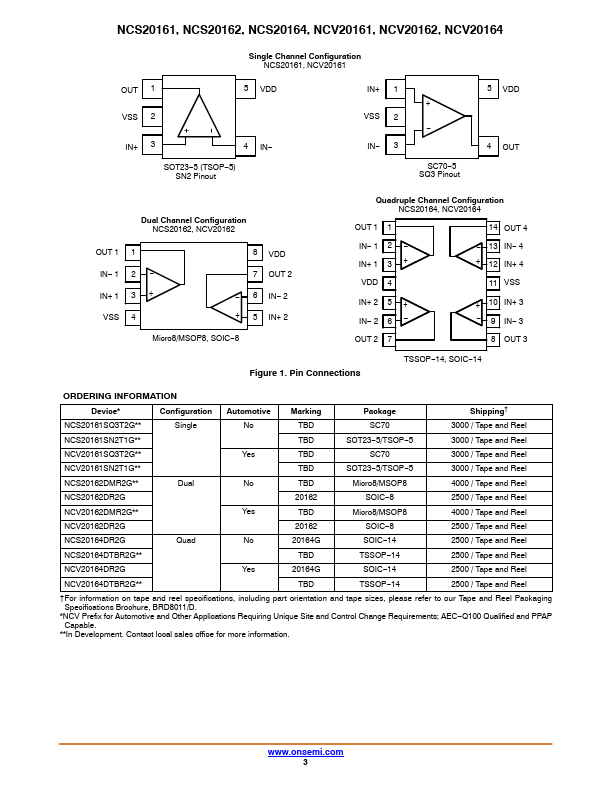

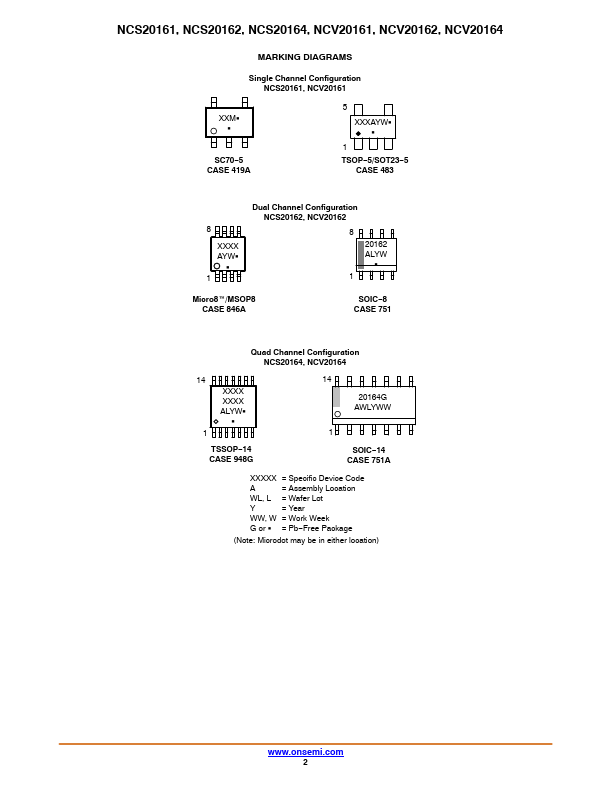

NCS20162 Datasheet Preview Page 2 NCS20162 Datasheet Preview Page 3

Datasheet Details

Part number:

NCS20162

Manufacturer:

ON Semiconductor ↗

File Size:

344.05 KB

Description:

Cmos operational amplifier.
