NCS333 - Zero-Drift Operational Amplifier

ON Semiconductor

📥 Download Datasheet

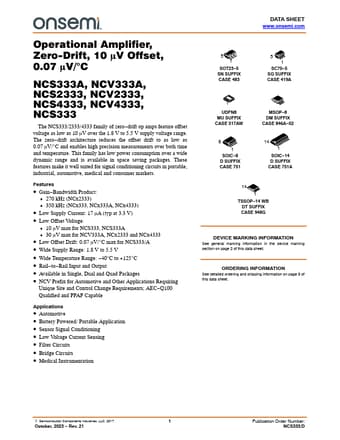

NCS333 Datasheet Preview — Preview of NCS333 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: NCS333
Manufacturer: ON Semiconductor ↗
File Size: 1.04 MB
Datasheet: NCS333-ONSemiconductor.pdf
Description: Zero-Drift Operational Amplifier

NCS333 Product details

Features

make it well suited for signal conditioning circuits in portable, industrial, automotive, medical and consumer markets. Features.
Gain.
Bandwidth Product:.
270 kHz (NCx2333).
350 kHz (NCx333, NCx333A, NCx4333).
Low Supply Current: 17 mA (typ at 3.3 V).
Low Offset Voltage:.
10 mV max for NCS333, NCS333A.
30 mV max for NCV333A, NCx2333 and NCx4333.
Low Offset Drift: 0.07 mV/°C max for NCS333/A.
Wide Supply Rang.
