NCT1008 - +-1 C Temperature Monitor

NCT1008 Description

NCT1008 +15C Temperature Monitor with Series Resistance Cancellation The NCT1008 is a dual-channel digital thermometer and undertemperature/overtemper.
1 VDD Positive Supply, 2. Negative Connection to Remote Temp.

NCT1008 Features

* On-chip and Remote Temperature Sensor
* 0.25°C Resolution/1°C Accuracy on Remote Channel
* 1°C Resolution/1°C Accuracy on Local Channel
* Series Resistance Cancellation Up to 1.5 kW
* Extended, Switchable Temperature Measurement Range 0°C to +127°C (Default)

NCT1008 Applications

* Smart Phones
* Desktop and Notebook Computers
* Smart Batteries
* Automotive
* Embedded Systems http://onsemi. com WDFN8 CASE 511AT DFN8 CASE 506BJ PIN ASSIGNMENT VDD 1 8 SCLK D+ 2 D
* 3 THERM 4 7 SDATA 6 ALERT/ THERM2 5 GND (Top View) MAR

📥 Download Datasheet

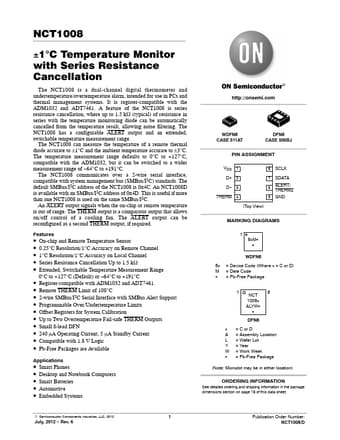

Preview of NCT1008 PDF
datasheet Preview Page 2 datasheet Preview Page 3
