NCT050A (NCT Series) Crystal Clock Oscillator

A crystal controlled, hybrid oscillator circuit that produces a true TTL output characteristic at frequencies between 4.0001 MHz and 66.6667 MHz. The device is mounted in a 14-pin DIP-compatible, all metal hermetic package. Physically and functionally interchangeable with all major manufacturers' de.

www.DataSheet4U.com SaRonix Crystal Clock Oscillator Technical Data Frequency Range: Frequency Stability: 4.0001 MHz to 66.6667 MHz ±25, ±50 or ±100 ppm over all conditions: calibration tolerance, operating temperature, input voltage change, load change, aging, shock and vibration. 5V, True TTL NCT Series Temperature Range: Operating: Storage: Supply Voltage: Supply Current: 4+ MHz to 20 MHz: 20+ to 66.6667 MHz: ACTUAL SIZE 0°C to +70°C or -40 to +85°C(limited frequencies) -55°C to +125°C +5.

NCT050A Features

* Ideal for high performance RISC and CISC based products

* True TTL level for low EMI

* Broad frequency range to 66.6667 MHz

* See NCH630x to replace NCT040x Output Waveform MIL-STD-883, MIL-STD-883, MIL-STD-883, MIL-STD-883, Method Method Method Method 1014, Cond

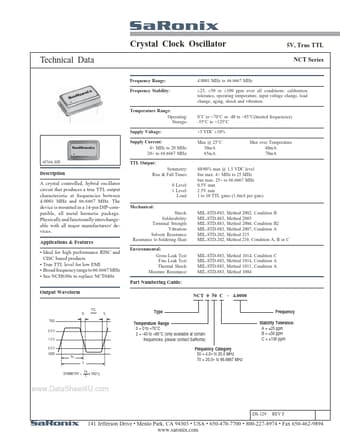

NCT050A Datasheet (103.85 KB)

NCT050A Datasheet Preview — Preview of NCT050A PDF

Datasheet Details

Part number:

NCT050A

Manufacturer:

SaRonix

File Size:

103.85 KB

Description:

(nct series) crystal clock oscillator.
